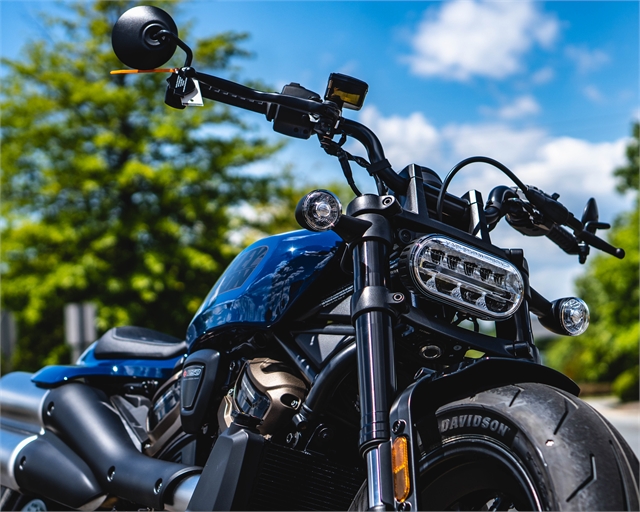

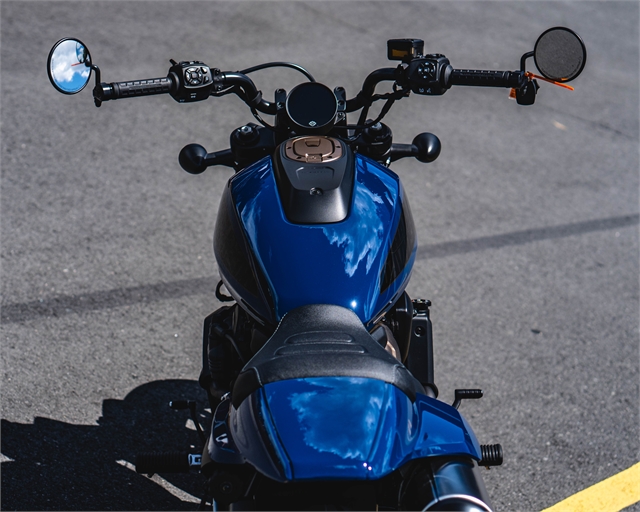

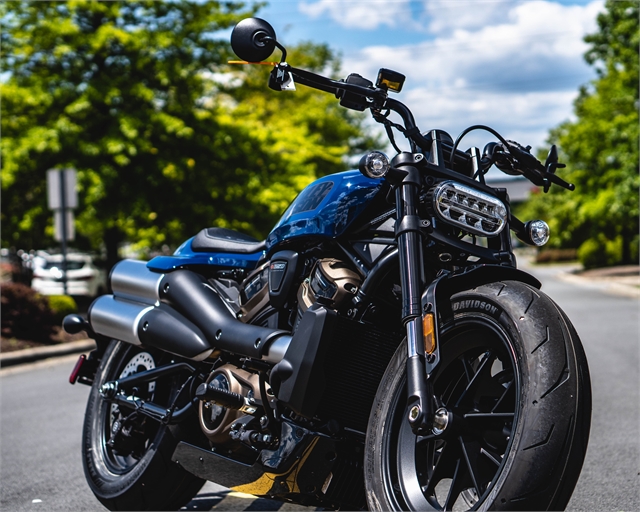

2023 Harley-Davidson Sportster S

Stock #H23208
VIN: 1HD1ZC414PB312799

374 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Harley-Davidson Sportster S . I'm in the area and you can reach me at or on my phone at .





  • Status:
    New
  • Vehicle:
    2023 Harley-Davidson Sportster S
  • VIN:
    1HD1ZC414PB312799
  • Model Number:
    RH1250S
  • Mileage:
    5 miles
  • Color:
    BRT BILIARD BLU
  • Stock Number:
    H23208
  • Title:
    Clear
  • Location:
    Speedway Harley-Davidson
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Diameter (in):
    12.6
  • Front Brake Diameter (mm):
    320
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    10.2
  • Rear Brake Diameter (mm):
    260
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)

ENGINE

  • Bore (in):
    4.13
  • Bore (mm):
    105
  • CAN Liters Per Kilometer (Combined):
    4.8
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    12
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    1252
  • Displacement (ci):
    76.4
  • Engine Brand Name:
    Revolution® Max
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    121
  • Horsepower (kW):
    90
  • Horsepower RPM:
    7500
  • Starter:
    Electric
  • Stroke (in):
    2.85
  • Stroke (mm):
    72.3
  • Torque (Ft Lbs):
    94
  • Torque (Nm):
    127
  • Torque RPM:
    6000
  • US Miles Per Gallon (Combined):
    49
  • Valve Configuration:
    DOHC

EXTERIOR

  • Belt Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    30.1
  • Seat Height (mm):
    765
  • Seat Location:
    Driver
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    Showa®
  • Front Suspension Size (in):
    43
  • Front Suspension Size (mm):
    1092.2
  • Front Suspension Type:
    Inverted Fork
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    Showa®
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    221
  • Dry Weight (lbs):
    487
  • Engine Displacement to Weight (cc):
    2.58
  • Fuel Capacity (gal):
    3.1
  • Fuel Capacity (l):
    11.8
  • Ground Clearance (in):
    3.5
  • Ground Clearance (mm):
    88.9
  • Length (ft):
    7.45
  • Length (ft/ft):
    7
  • Length (ft/in):
    5.4
  • Length (in):
    89.4
  • Length (mm):
    2270
  • Wet Weight (kg):
    228
  • Wet Weight (lbs):
    502
  • Wheelbase (in):
    59.8
  • Wheelbase (mm):
    1520

TRANSMISSION

  • Gear Ratio (1):
    12.21
  • Gear Ratio (2):
    9.022
  • Gear Ratio (3):
    6.994
  • Gear Ratio (4):
    5.641
  • Gear Ratio (5):
    4.731
  • Gear Ratio (6):
    4.131
  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Harley-Davidson Series 160/70 TR17 73V
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    V
  • Front Tire Width:
    160
  • Front Wheel Diameter:
    17
  • Rear Tire (Full Spec):
    Dunlop® Harley-Davidson Series 180/70 R16 77V
  • Rear Tire Aspect Ratio:
    70
  • Rear Tire Speed Rating:
    V
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
