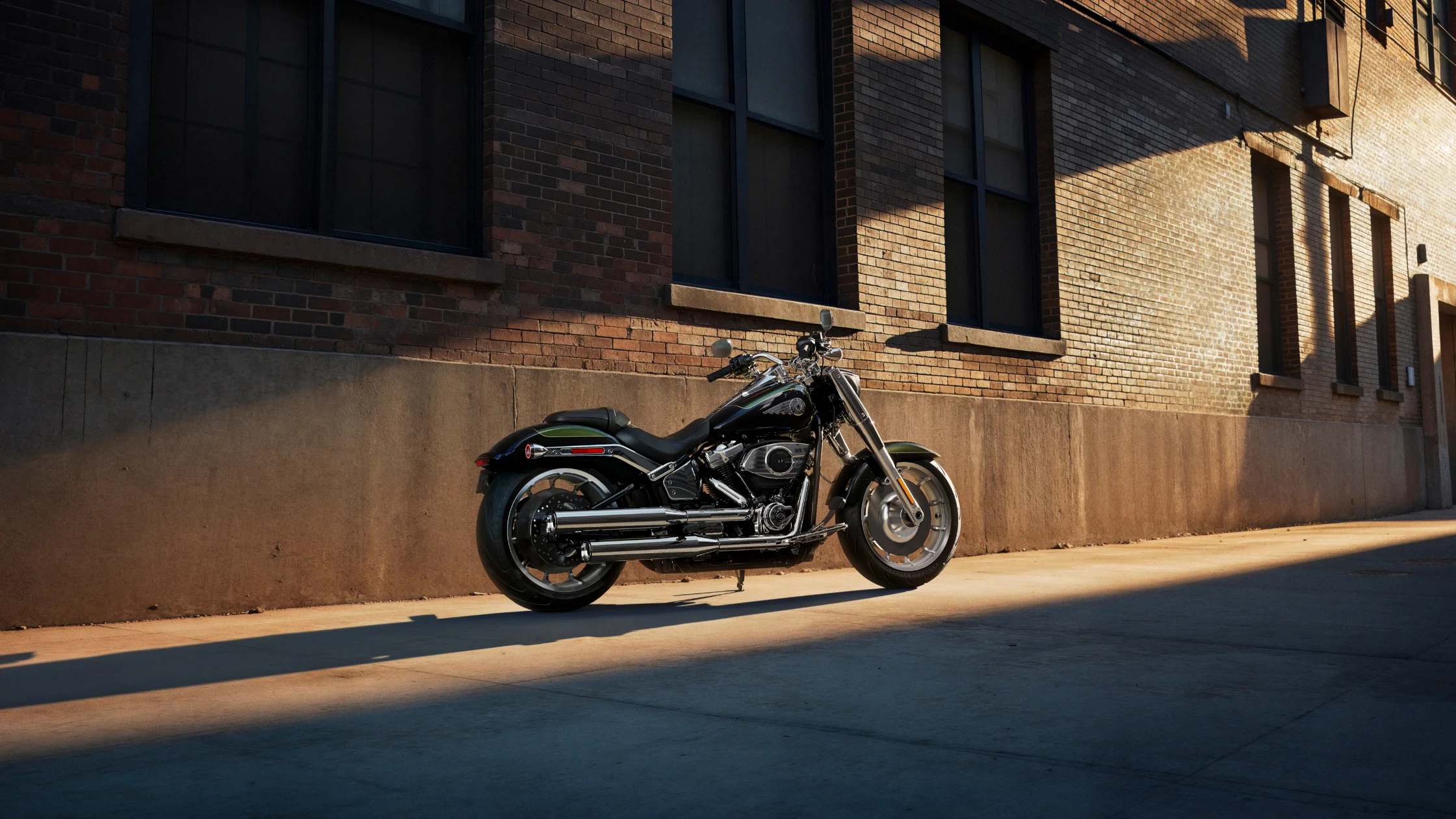

2026 Harley-Davidson® Fat Boy® Overview and Model Positioning
The 2026 Harley-Davidson® Fat Boy® is a heavyweight cruiser built on the Softail® platform, defined by a large-displacement V-twin engine, wide rear tire configuration, and a low seat height. The motorcycle integrates mechanical components designed for torque-focused performance, combined with a chassis that emphasizes stability and load distribution. The overall dimensions include a length of 93.1 inches, a width of 40 inches, and a height of 44.1 inches. The wheelbase measures 65 inches, contributing to straight-line tracking and predictable handling characteristics.
Seat height is specified at 25.9 inches when laden and 26.6 inches when unladen. Ground clearance is 4.9 inches. Steering geometry includes a rake of 30 degrees, a fork angle of 32 degrees, and a trail measurement of 4.1 inches. These values support controlled steering input and consistent front-end feedback. The 2026 Harley-Davidson® Fat Boy® is equipped with Michelin® Scorcher 11 tires, sized 160/60R18 at the front and 240/40R18 at the rear. The wide rear tire plays a significant role in traction and overall stability.
Milwaukee-Eight® 117 Engine Configuration and Output
The 2026 Harley-Davidson® Fat Boy® uses the Milwaukee-Eight® 117 Custom engine, a V-twin configuration with a displacement of 1,923 cubic centimeters. The engine features a bore of 4.075 inches and a stroke of 4.5 inches, with a compression ratio of 10.3:1. Valve operation uses a pushrod system with overhead valves and hydraulic self-adjusting lifters. Each cylinder contains four valves, allowing improved airflow management and combustion efficiency.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The intake system uses a Helix-style air cleaner. Exhaust flow is handled through a 2-into-2 staggered system with a catalyst integrated into the muffler. The lubrication system is a pressurized dry-sump design equipped with an oil cooler, which supports thermal control and consistent oil circulation.
The engine produces 126 foot-pounds of torque at 3,000 revolutions per minute. Maximum power output is rated at 103 horsepower at 4,800 revolutions per minute. These figures indicate a configuration optimized for low and mid-range output, supporting steady acceleration and controlled throttle response across standard riding conditions.
Transmission and Drivetrain Architecture
Power from the Milwaukee-Eight® 117 engine is transmitted through a 6-Speed Cruise Drive® transmission. The primary drive uses a chain with a 34/46 ratio. Final drive is handled by a belt system with a 32/66 ratio. This configuration is selected for durability and reduced maintenance requirements compared to chain-driven final systems.
The clutch system is a mechanical 10-plate wet clutch with assist and conventional functionality. This design supports smoother engagement and consistent lever effort. The transmission ratios are structured to provide a gradual transition between gears. First gear has an overall ratio of 9.311, followed by 6.454 in second, 4.793 in third, 3.882 in fourth, 3.307 in fifth, and 2.79 in sixth. The spacing between ratios allows controlled acceleration while maintaining lower engine speeds in higher gears.
Frame Construction and Structural Components
The frame of the 2026 Harley-Davidson® Fat Boy® is constructed from mild steel using a tubular design with a rectangular-section backbone. The structure incorporates stamped, cast, and forged junctions, joined using MIG welding techniques. Aluminum forged fender supports are included to reduce weight in non-critical load areas while maintaining overall rigidity.
The swingarm is also constructed from mild steel tubular sections and includes a stamped cross-member and forged axle junctions. The swingarm is designed to handle the torque output of the engine while maintaining alignment and structural integrity. A removable belt spacer is integrated into the design, allowing adjustments during maintenance procedures.
Suspension System and Ride Control
Front suspension consists of a 49 millimeter telescopic fork with dual-bending valve technology. The fork includes aluminum triple clamps and dual-rate springs. This setup is designed to provide controlled compression and rebound characteristics while maintaining front-end stability.
Rear suspension uses a hidden coil-over monoshock with a free piston design. The shock has a stroke of 43 millimeters and includes hydraulic preload adjustment. This allows the rider to modify rear suspension settings based on load conditions. Front suspension travel is 5.1 inches, while rear travel is 3.4 inches. These measurements indicate a configuration that balances ride comfort with controlled chassis movement.
Wheel and Tire Integration
The 2026 Harley-Davidson® Fat Boy® is equipped with Lakester cast aluminum wheels that are machined for durability and consistent performance. Both front and rear wheels measure 18 inches in diameter. The front wheel has a width of 4.5 inches, while the rear wheel is significantly wider at 8 inches.
The tire setup uses Michelin® Scorcher 11 models at both ends. The front tire size is 160/60R18, and the rear tire size is 240/40R18. The wide rear tire increases the contact patch, supporting traction during acceleration.
Braking System and Control Hardware
The braking system includes a 4-piston fixed front caliper and a 2-piston floating rear caliper. Rotor design uses split 7-spoke floating rotors for both front and rear applications. The front rotor diameter measures 11.8 inches, with a thickness of 0.2 inches. The rear rotor diameter is 11.5 inches, with a thickness of 0.23 inches.
Anti-lock Braking System is standard equipment. The system is designed to prevent wheel lock during braking, maintaining traction and directional control. The braking setup is configured for consistent stopping performance under varying load conditions.
Rider Safety Systems and Electronic Assistance
The 2026 Harley-Davidson® Fat Boy® includes several electronic safety systems designed to support rider control. These systems include the Traction Control System and the Drag-torque Slip Control System. Tire Pressure Monitoring System is also included, providing continuous monitoring of tire pressure levels.
Cornering enhancements are integrated into the safety package. These include Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. These systems adjust performance based on lean angle, supporting stability during cornering.
Electrical System and Instrumentation
The 2026 Harley-Davidson® Fat Boy® uses a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours, with 310 cold cranking amps at 0 degrees Fahrenheit. Charging is managed by a three-phase 48-amp system. Output is rated at 364 watts at 13 volts and 900 revolutions per minute, with a maximum output of 624 watts at 2,000 revolutions per minute.
Starting is handled by a 1.6-kilowatt electric starter with solenoid shift engagement. Lighting components are fully LED-based. The headlamp includes both low and high beam functions along with signature position lighting. Tail, stop, and turn signals use bullet-style LED units.
Instrumentation consists of a 5-inch analog speedometer combined with a digital display. The digital interface provides information, including gear position, odometer, fuel level, ride modes, traction control status, ABS status, tire pressure monitoring, cruise control, clock, trip functions, range, and tachometer indication. A USB-C power outlet is included, providing 5 volts at 2.4 amps for device charging.
Fuel Capacity and Efficiency Metrics
The fuel tank has a total capacity of 5 gallons. A reserve warning is triggered at approximately 1 gallon remaining. Engine oil capacity with filter is 5 quarts. Transmission capacity is 1 quart, and the primary chain case holds 1.43 quarts.
Fuel economy is estimated at 47 miles per gallon under combined city and highway conditions. These figures provide a reference for operational range and maintenance planning.
