Precision Engineering Overview of the 2026 Harley-Davidson® Heritage Classic

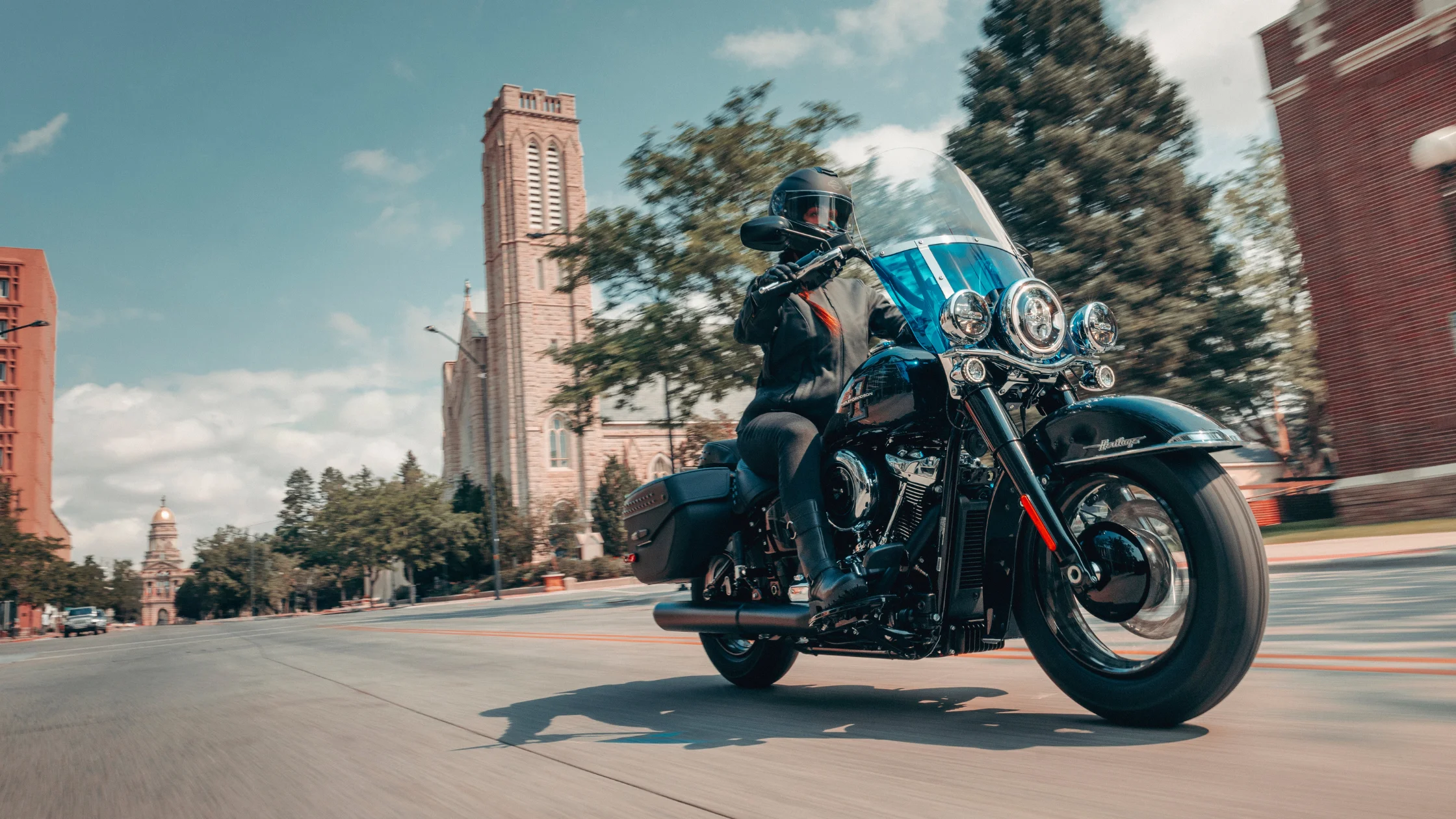

The 2026 Harley-Davidson® Heritage Classic is engineered as a large-displacement cruiser with a focus on measurable performance, structural integrity, and rider-assist integration. The motorcycle uses a Milwaukee-Eight® 117 Classic engine paired with a six-speed transmission and a belt-driven final drive system. The chassis dimensions, suspension components, and braking hardware are configured to support stable operation across varied road conditions. The model incorporates a defined set of electronic rider-assistance systems while maintaining a simplified instrumentation approach without a full infotainment interface.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Heritage Classic is equipped with a Milwaukee-Eight® 117 Classic engine with a displacement of 117 cubic inches or 1,923 cubic centimeters. The engine uses a pushrod-operated overhead valve design with four valves per cylinder and hydraulic self-adjusting lifters. Bore measures 4.075 inches, while stroke measures 4.5 inches. The compression ratio is specified at 10.3:1. These values indicate a configuration designed for sustained torque delivery and stable combustion performance.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. Air intake is handled by a 9-inch round air cleaner that uses washable fiberglass filter media. Exhaust routing follows a 2-into-1 configuration with a catalyst integrated into the header. The lubrication system is pressurized and uses a dry-sump design with an oil cooler, supporting consistent thermal management during extended operation.
Engine output is rated at 120 foot-pounds of torque at 2,500 revolutions per minute and 98 horsepower at 4,600 revolutions per minute. Torque measurement follows the J1349 standard. This output profile prioritizes low to mid-range engine speed performance. The torque peak at a relatively low engine speed supports steady acceleration and reduced need for frequent gear changes during standard riding conditions.
Drivetrain Structure and Gear Ratios
The drivetrain consists of a chain-driven primary system with a 34/46 ratio and a belt-driven final drive with a 32/66 ratio. Power transfer is controlled through a mechanical 10-plate wet clutch with assist and conventional actuation. This clutch configuration is designed to manage high torque loads while maintaining consistent engagement characteristics.
The transmission is a 6-Speed Cruise Drive® system. Gear ratios are defined as 9.311 in first gear, 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. These ratios provide a progression that supports controlled acceleration at lower speeds and reduced engine speed during higher-speed cruising. The spacing between gears allows the engine to remain within its optimal torque range under varying load conditions.
Frame Construction and Structural Integrity
The frame is constructed from mild steel using a tubular design with a rectangular-section backbone. The structure incorporates stamped, cast, and forged junctions that are joined through MIG welding. Aluminum forged fender supports are included to reduce weight in non-critical load areas while maintaining structural rigidity.
The swingarm is also fabricated from mild steel using tubular sections with a stamped cross-member and forged axle junctions. It is assembled using MIG welding and includes a removable belt spacer. This construction supports alignment accuracy and durability under continuous load transfer from the drivetrain to the rear wheel.
Suspension Components and Travel Measurements
Front suspension uses a 49 millimeter telescopic fork with dual-bending valve technology and aluminum triple clamps. The fork is equipped with a dual-rate spring and includes protective covers. Rear suspension uses a hidden coil-over monoshock with a free piston design and a 56 millimeter stroke. Hydraulic preload adjustment is included to allow for compensation based on rider weight and cargo load.
Suspension travel is measured at 5.1 inches at the front and 4.4 inches at the rear. These travel values are aligned with the motorcycle’s intended use as a cruiser with load-carrying capability. The combination of front fork design and rear monoshock configuration supports controlled compression and rebound characteristics under varied riding conditions.
Dimensional Specifications and Geometry
The motorcycle has an overall length of 95.1 inches, a width of 36.6 inches, and a height of 54.7 inches. The wheelbase is 64.2 inches, contributing to longitudinal stability. Steering geometry includes a rake angle of 30 degrees, a fork angle of 30 degrees, and a trail measurement of 5.5 inches. These values indicate a configuration designed for steady directional control and predictable steering response.
Seat height is measured at 26.3 inches in a laden condition and 27.2 inches in an unladen condition. Ground clearance is specified at 4.7 inches. Lean angle is measured at 27.4 degrees on both the left and right sides. These dimensions define the motorcycle’s interaction with road surfaces and its operational limits during cornering.
Wheels, Tires, and Braking Hardware
The standard wheel configuration consists of black 9-spoke cast aluminum wheels with a diameter of 16 inches and a width of 3 inches for both front and rear. An optional configuration includes black tubeless laced wheels with 36 spokes. Tire specifications include a 130/90B16 Dunlop® D401F front tire and a 150/80B16 Dunlop® D401T rear tire. These bias-ply tires are designed for load support and consistent contact patch behavior.
The braking system includes a 4-piston fixed front caliper and a 2-piston floating rear caliper. Rotor design uses solid uniform expansion discs. The front rotor has a diameter of 11.8 inches and a thickness of 0.2 inches. The rear rotor has a diameter of 11.5 inches and a thickness of 0.23 inches. The system does not use dual front discs. Anti-lock braking functionality is included as a standard feature, providing controlled braking modulation during variable traction conditions.
Electrical Architecture and Instrumentation
The electrical system uses a sealed maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 ampere-hours, and 310 cold-cranking amps at 0 degrees Fahrenheit. Charging is managed through a three-phase 48 amp system that produces 364 watts at 13 volts at 900 rpm and up to 624 watts at 2,000 rpm. Starting is handled by a 1.6-kilowatt electric starter with solenoid shift engagement.
Lighting components are fully LED-based, including the headlamp with low beam, high beam, and signature position lamp. The tail and stop lamp use a buffet-style LED configuration. Front turn signals are LED bullet units, while rear turn signals are integrated into a light bar. Auxiliary LED fog lamps are also included to enhance forward visibility.
Instrumentation consists of a 5-inch analog speedometer paired with a digital display. The display provides gear position, odometer, fuel level, ride modes, heated gear status, traction control status, ABS status, tire pressure monitoring information, cruise control indication, clock, trip data, range, and tachometer readout. A USB-C power outlet is included with an output of 5 volts at 2.4 amps for device charging.
Fuel Capacity and Fluid Management
Fuel capacity is specified at 5 gallons, with a reserve capacity indicated by a warning light at approximately 1 gallon. Fuel economy is estimated at 47 miles per gallon under combined city and highway conditions. Engine oil capacity with filter is 5 quarts. Transmission fluid capacity is 1 quart, and primary chain case capacity is 1.25 quarts. These values define the operational range and maintenance requirements associated with extended use.
The motorcycle has a weight of 690 pounds as shipped and 719 pounds in running order. Gross vehicle weight rating is 1,160 pounds. Front axle weight rating is 450 pounds, and rear axle weight rating is 730 pounds. Luggage capacity is measured at 1.6 cubic feet, providing storage capability for extended travel requirements.
Integrated Rider Safety Systems
The 2026 Harley-Davidson® Heritage Classic incorporates multiple electronic safety systems designed to assist with traction management and braking control. The motorcycle includes Anti-lock Brake System, Traction Control System, Drag-torque Slip Control System, and Tire Pressure Monitoring System as standard equipment. These systems operate to maintain tire grip and monitor operating conditions under varying inputs.
Cornering-enhanced systems are also included. These consist of Cornering Enhanced Anti-lock Brake System, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. These systems adjust functionality based on lean angle conditions, allowing for controlled operation during cornering. Electronic Linked Braking and vehicle hold control are not included in this model.
