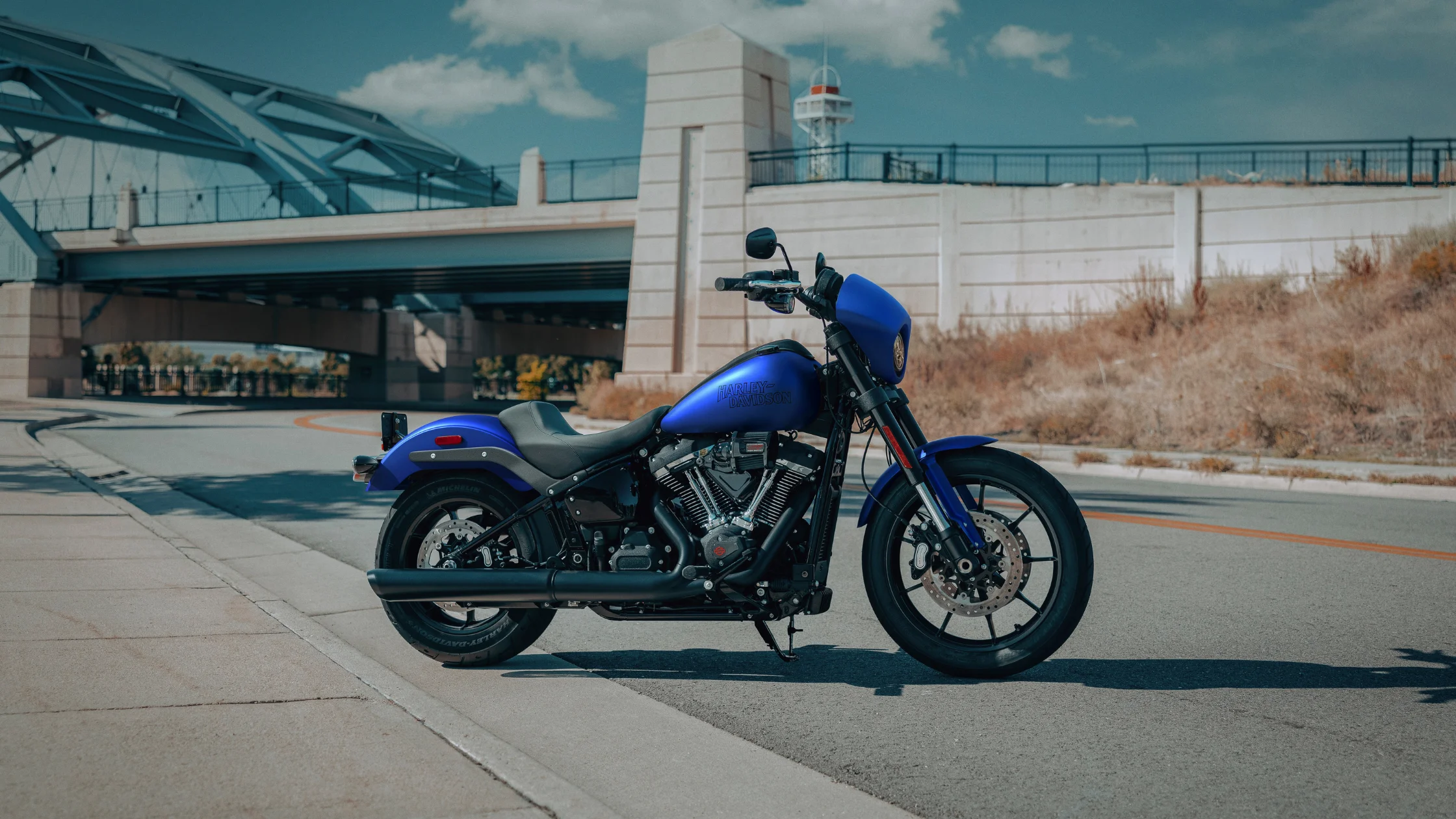

The 2026 Harley-Davidson® Low Rider® S is engineered as a performance-focused cruiser that prioritizes mechanical efficiency, controlled power delivery, and structural precision. This model integrates a high-displacement V-twin engine with a rigid frame and a carefully tuned suspension system to support consistent handling. Its configuration reflects a balance between output, weight distribution, and rider interface systems. Each component is designed to function within a cohesive system that supports acceleration, braking, and directional stability without unnecessary complexity.
The 2026 Harley-Davidson® Low Rider® S presents a defined set of dimensions and mechanical characteristics that contribute to its riding behavior. With a length of 92.9 inches, a width of 35 inches, and a height of 47.4 inches, the structure supports a stable stance. The seat height measures 27 inches when laden and 28.1 inches when unladen, allowing for a lower center of gravity. Ground clearance is set at 5.7 inches, maintaining adequate space for cornering while preserving a low profile.
Engine Configuration and Output Characteristics
The Milwaukee-Eight® 117 High Output engine is configured to deliver consistent power and torque across a wide operating range. The engine displacement is 117 cubic inches, equivalent to 1,923 cubic centimeters. The bore measures 4.075 inches, and the stroke extends to 4.5 inches, supporting strong torque generation through longer piston travel.
The compression ratio is rated at 10.3:1, contributing to combustion efficiency and stable power delivery. The engine produces 114 horsepower at 5,000 rpm and generates 128 ft-lb of torque at 4,000 rpm. This torque output supports immediate acceleration and sustained performance under load.
The valve system uses a pushrod-operated overhead configuration with hydraulic self-adjusting lifters. Each cylinder includes four valves, allowing efficient airflow and combustion. Fuel delivery is controlled through Electronic Sequential Port Fuel Injection, which meters fuel precisely based on operating conditions.
Air intake is managed through a Heavy Breather system that uses a washable synthetic filter element. The exposed design allows increased airflow while maintaining filtration efficiency. Exhaust gases are directed through a 2-into-1 system with an integrated catalyst in the header, supporting emissions compliance and consistent exhaust flow.
The lubrication system operates as a pressurized dry-sump design with an oil cooler. This configuration stabilizes engine temperature during extended operation and reduces oil aeration during high-speed riding.
Drivetrain Mechanics and Gear Distribution
The drivetrain system is designed to transfer engine output efficiently to the rear wheel. A chain-driven primary system with a 34 to 46 ratio connects the engine to the transmission. The final drive uses a belt system with a 32 to 66 ratio, reducing maintenance requirements while maintaining smooth power delivery.
The 2026 Harley-Davidson® Low Rider® S is equipped with a 6-Speed Cruise Drive® transmission. Gear ratios are structured to support both low-speed control and highway efficiency. The first gear ratio is 9.311, followed by 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. This progression allows gradual power distribution and reduced engine strain at higher speeds.
The clutch system is mechanical and uses a 10-plate wet configuration with assist functionality. This reduces lever effort while maintaining consistent engagement under load. The design supports repeated gear changes without excessive wear.
Frame Construction and Structural Design
The frame uses a mild steel tubular structure with a rectangular-section backbone. It incorporates stamped, cast, and forged junctions that are joined through MIG welding. This construction method ensures consistent strength across stress points while maintaining manageable weight.
The swingarm is constructed from mild steel tubular sections and includes a stamped cross-member and forged axle junctions. It also features a removable belt spacer, allowing for easier maintenance and adjustments.
The wheelbase measures 63.6 inches, contributing to straight-line stability and controlled handling. The rake angle is set at 28 degrees, and the trail measures 5.7 inches. These values support predictable steering response and consistent front-end feedback.
Suspension System and Ride Control
The suspension system is configured to balance comfort with performance stability. The front suspension consists of a 43 mm inverted single-cartridge fork. Aluminum triple clamps provide structural support and reduce flex during braking and cornering. The fork uses a single-rate spring, maintaining consistent compression characteristics.
The rear suspension uses a hidden coil-over monoshock with a free piston design. It offers a 56 mm stroke and includes hydraulic preload adjustment. This allows riders to modify suspension behavior based on load conditions.
Front suspension travel measures 5 inches, while rear suspension travel is 4.4 inches. This range supports controlled absorption of road irregularities while maintaining stability during acceleration and braking.
Wheels, Tires, and Contact Geometry
The 2026 Harley-Davidson® Low Rider® S uses black Radiate cast aluminum wheels designed for durability and reduced unsprung weight. The front wheel measures 19 inches in diameter and 2.5 inches in width. The rear wheel measures 16 inches in diameter and 5 inches in width.
Tires are Michelin® Scorcher 31 models, selected for consistent grip and wear resistance. The front tire specification is 110/90B19, and the rear tire specification is 180/70B16. These dimensions support traction during acceleration and stability during cornering.
Lean angles are measured at 31.3 degrees on both the left and right sides. This allows for controlled cornering without premature contact between the motorcycle and the road surface.
Braking System and Control Response
The braking system is engineered for consistent stopping performance. The front setup includes dual 11.8-inch floating rotors paired with 4-piston fixed calipers. This configuration delivers strong braking force and even pressure distribution.
The rear brake uses an 11.5-inch rotor with a 2-piston floating caliper. This complements the front system and contributes to balanced deceleration.
The rotors feature a split 7-spoke floating design that supports heat dissipation and reduces brake fade. Anti-lock Braking System is included as a standard feature, preventing wheel lock during sudden braking and improving stability on low-traction surfaces.
Electrical System and Rider Interface
The electrical system uses a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours. It provides 310 cold-cranking amps at 0 degrees Fahrenheit, supporting reliable engine starts.
Charging is managed through a three-phase 48-amp system. It delivers 364 watts at 900 rpm and can reach a maximum output of 624 watts at 2,000 rpm.
The starting system uses a 1.6 kW electric starter with solenoid engagement. This ensures consistent ignition performance across varying conditions.
Lighting components are fully LED-based. The headlamp includes a low beam, a high beam, and a signature position lamp. The tail lamp and turn signals also use LED technology, improving visibility and reducing energy consumption.
The instrument cluster consists of a 4-inch analog speedometer combined with a digital display. It provides information such as gear position, odometer, fuel level, ride modes, traction control status, ABS status, tire pressure monitoring, cruise control, trip data, range, and tachometer readings.
A USB-C power outlet provides 5 volts at 2.4 amps, allowing device charging during operation.
Fuel Capacity and Efficiency Metrics
The fuel tank capacity is 5 gallons, with a reserve capacity of 1 gallon indicated by a warning light. This allows for extended riding distances before refueling.
The 2026 Harley-Davidson® Low Rider® S achieves an estimated fuel economy of 47 miles per gallon. This figure reflects combined city and highway conditions and supports efficient fuel usage relative to engine displacement.
Rider Safety Systems and Control Technologies
The 2026 Harley-Davidson® Low Rider® S includes integrated rider safety systems designed to enhance stability and control. Anti-lock Braking System is included to prevent wheel lock during braking. The Traction Control System monitors wheel speed and adjusts power delivery to reduce wheel slip.
The Drag-torque Slip Control System manages rear wheel behavior during aggressive downshifting, reducing the likelihood of wheel hop. The Tire Pressure Monitoring System provides real-time pressure data, allowing riders to maintain optimal tire conditions.
Cornering enhancements extend these systems further. Cornering Enhanced Anti-lock Braking System adjusts braking force based on lean angle. The Cornering Traction Control System modifies power delivery during turns. Cornering Drag-torque Slip Control System provides additional stability when decelerating in a lean.
These systems function together to support controlled operation under varying riding conditions.
