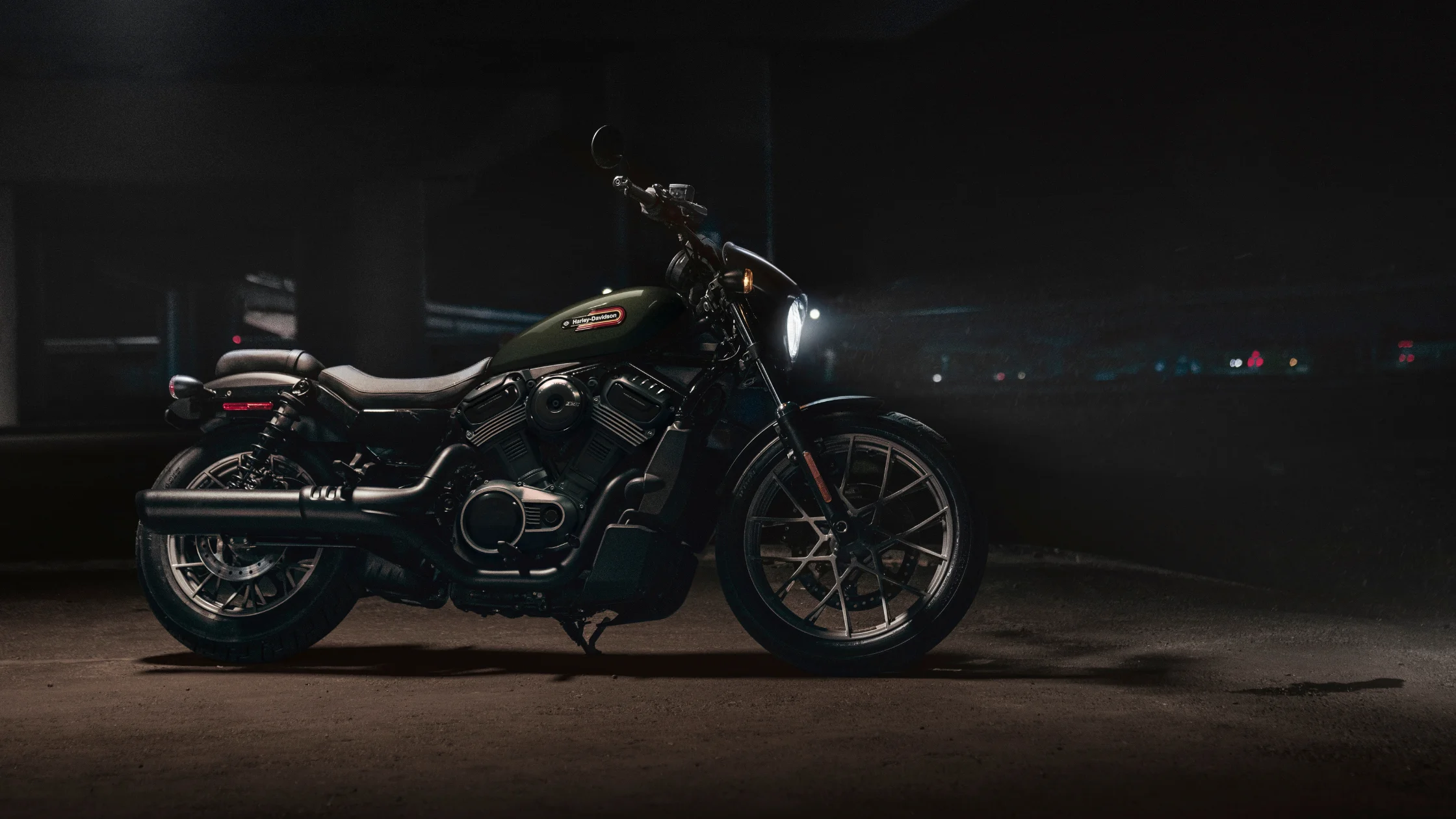

The 2026 Harley-Davidson® Nightster® Special combines a liquid-cooled V-twin engine, modern rider technology, compact chassis dimensions, and standard electronic rider aids into a middleweight cruiser platform. The motorcycle uses the Revolution® Max 975T powertrain paired with a 6-speed transmission and a belt final drive. Its design emphasizes balanced weight distribution, low seat height, responsive handling geometry, and integrated electronic systems. The 2026 Harley-Davidson® Nightster® Special also incorporates LED lighting, Bluetooth® connectivity, traction control, anti-lock braking technology, and a TFT instrumentation display designed to provide operational data directly to the rider.
Revolution® Max 975T Engine Configuration
The 2026 Harley-Davidson® Nightster® Special uses the Revolution® Max 975T engine with a displacement of 975 cc, or 59.5 cubic inches. The engine uses a liquid-cooled design with chain-driven dual overhead camshafts and hydraulic self-adjusting lifters. Intake variable valve timing is included, along with four valves per cylinder. This configuration supports controlled airflow management across different engine speeds.
The engine uses a bore measuring 3.82 inches and a stroke measuring 2.6 inches. The compression ratio is rated at 12:1. Fuel delivery is managed through Electronic Sequential Port Fuel Injection. Harley-Davidson® specifies premium fuel with a recommended octane rating of 91 or higher. The air intake system uses a downdraft intake arrangement with tuned velocity stacks and washable filter media.
Exhaust routing uses a 2-into-1 system with a catalyst integrated into the header section. Lubrication is managed through a semi-dry sump system. This arrangement supports compact engine packaging while maintaining lubrication stability during acceleration and braking transitions.
Engine output is rated at 91 horsepower, or 68 kW, at 7,500 rpm. Torque output is listed at 72 ft-lb at 5,750 rpm using J1349 testing standards. The combination of horsepower and torque figures positions the 2026 Harley-Davidson® Nightster® Special within the performance-focused middleweight cruiser category while maintaining manageable dimensions and overall weight.
Transmission and Drivetrain Characteristics
The 2026 Harley-Davidson® Nightster® Special uses a 6-speed transmission paired with a gear-driven primary drive system and a belt final drive. The primary drive ratio is listed at 49/89, while the final drive ratio measures 34/80. The drivetrain configuration supports smooth power delivery and reduced maintenance requirements compared with chain-driven systems.
The motorcycle uses a mechanical assist-and-slip clutch with an 8-plate wet clutch assembly rated at 1090N. The assist mechanism reduces clutch lever effort, while the slip function assists with rear-wheel stability during aggressive downshifts or rapid deceleration.
Gear ratios are configured progressively through all six gears. First gear uses a 12.21 overall ratio, second gear uses 9.022, third gear uses 6.994, fourth gear uses 5.641, fifth gear uses 4.731, and sixth gear uses 4.131. This ratio spread supports acceleration at lower speeds while maintaining reduced engine speed during highway riding.
Compact Dimensions and Rider Positioning
The 2026 Harley-Davidson® Nightster® Special measures 89.2 inches in overall length, 33.9 inches in width, and 46.7 inches in height. The wheelbase measures 60.8 inches. Steering geometry consists of a 30-degree rake angle, 28-degree fork angle, and 5.4 inches of trail. These measurements influence steering response, directional stability, and low-speed maneuverability.
Seat height is rated at 27.1 inches in laden configuration and 28.1 inches in unladen configuration. The lower seat position supports easier rider access during stops and low-speed operation. Static ground clearance measures 4.7 inches.
Weight as shipped is listed at 465 pounds, while the running order weight measures 483 pounds. Gross vehicle weight rating is listed at 922 pounds. The Front Gross Axle weight rating is 353 pounds, and the rear gross axle weight rating is 595 pounds.
Fuel capacity measures 3.1 gallons with a reserve fuel capacity of 0.8 gallons tied to the fuel warning system. Oil capacity with filter installed measures 4.75 quarts. Coolant capacity is listed at 2.22 quarts.
Chassis Engineering and Structural Components
The chassis uses a stressed-member design with a high-strength low-alloy steel trellis frame. Construction includes stamped, cast, and forged junctions joined through MIG welding techniques. The frame also incorporates an aluminum forged mid-structure section to support rigidity while limiting excess mass.
The swingarm uses mild steel rectangular tubing with a stamped cross-member structure and MIG-welded assembly points. This design contributes to rear suspension stability and drivetrain alignment.
Front suspension uses 41 mm SHOWA® Dual Bending Valve conventional forks combined with aluminum fork triple clamps. Rear suspension uses dual outboard direct-acting emulsion technology shock absorbers with coil springs. Rear preload adjustment is controlled through threaded collar adjustment mechanisms.
Front suspension travel measures 4.5 inches, while rear suspension travel measures 3 inches. Suspension calibration supports urban riding, highway operation, and moderate cornering stability while maintaining cruiser-oriented ergonomics.
Wheel and Tire Specifications
The 2026 Harley-Davidson® Nightster® Special uses cast aluminum wheels finished in silver. The front wheel diameter measures 19 inches with a width of 2.5 inches. Rear wheel diameter measures 16 inches with a width of 4.25 inches.
Tire specifications include Dunlop® Harley-Davidson® Series bias blackwall tires. The front tire uses a D401F model in a 100/90-19 57H specification. The rear tire uses a D401T model in a 150/80B16 77H specification. Tire sizing contributes to the motorcycle’s balance between steering response and straight-line stability.
Lean angle capability measures 32 degrees on both the left and right sides using J1168 testing standards. These measurements reflect the motorcycle’s available cornering clearance before hard component contact occurs.
Brake System Configuration and Electronic Controls
Front braking uses a single floating hub-mounted rotor measuring 12.6 inches in diameter with a thickness of 0.23 inches. The front brake caliper uses an axially mounted 4-piston configuration. Rear braking uses a solid, uniform expansion rotor measuring 10.2 inches in diameter with a thickness of 0.2 inches. Rear caliper design uses a floating single-piston arrangement.
An anti-lock braking system is included as standard equipment. The ABS system assists with wheel-speed monitoring during braking events and helps reduce wheel lock under reduced-traction conditions.
The 2026 Harley-Davidson® Nightster® Special also includes Traction Control System functionality. The traction control system monitors rear-wheel slip during acceleration and adjusts engine response accordingly. Drag-torque Slip Control System functionality is also included to assist with rear-wheel stability during deceleration and downshifting conditions.
Tire Pressure Monitoring System capability is integrated into the vehicle information system. Tire pressure data is displayed through the TFT instrumentation interface. Electronic Linked Braking, Vehicle Hold Control, Wheel Lift Mitigation, and cornering-enhanced rider safety systems are not listed within the standard specification package.
TFT Instrumentation and Rider Interface Technology
Instrumentation is managed through a 4-inch TFT display with a 102 mm viewable screen area. The display includes speedometer information, gear position indication, odometer data, fuel level monitoring, trip information, clock display, ambient air temperature data, tachometer indication, and estimated riding range information.
The system also includes side stand alerts, low temperature alerts, and tip-over notifications. Cruise indication is displayed directly within the instrument interface.
Bluetooth® capability is integrated into the TFT system. Phone pairing supports access to calls, media functions, and navigation features through the H-D App. Bluetooth® headset support is included for rider and passenger communication functions.
Vehicle information screen functionality includes Tire Pressure Monitoring System information, engine temperature monitoring, battery voltage readings, and ambient air temperature display. USB-C connectivity supports instrument updates and charging capability. USB charging output is rated at 5V and 3A within the infotainment specifications, while the electric power outlet specification lists USB-C output at 5V and 2.4 amps.
LED Lighting and Electrical System Components
The 2026 Harley-Davidson® Nightster® Special uses LED lighting throughout the motorcycle. The headlamp assembly includes low beam and high beam functions combined with signature position lighting. Rear lighting uses an all-LED configuration for tail and stop lamp operation. Front and rear turn signals use LED bullet-style signal units.
Electrical storage is handled through a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 12Ah. Cold cranking amperage is listed at 225 CCA at 0°F.
Charging is managed through a three-phase 45-amp charging system. Output is rated at 300 watts at 13 volts and 1,200 rpm. Maximum charging output reaches 585 watts at 13 volts and 2,250 rpm. The electric starting system uses a 0.9 kW direct-drive starter motor arrangement.
Fuel Economy and Service Intervals
Estimated fuel economy is rated at 52 mpg using estimated city and highway testing methods. Fuel efficiency figures are influenced by riding conditions, rider input, environmental conditions, and maintenance intervals.
The service schedule specifies an initial maintenance interval at 1,000 miles, followed by service intervals every 5,000 miles thereafter. Additional inspections for selected systems and components are required at 2,500-mile intervals.
