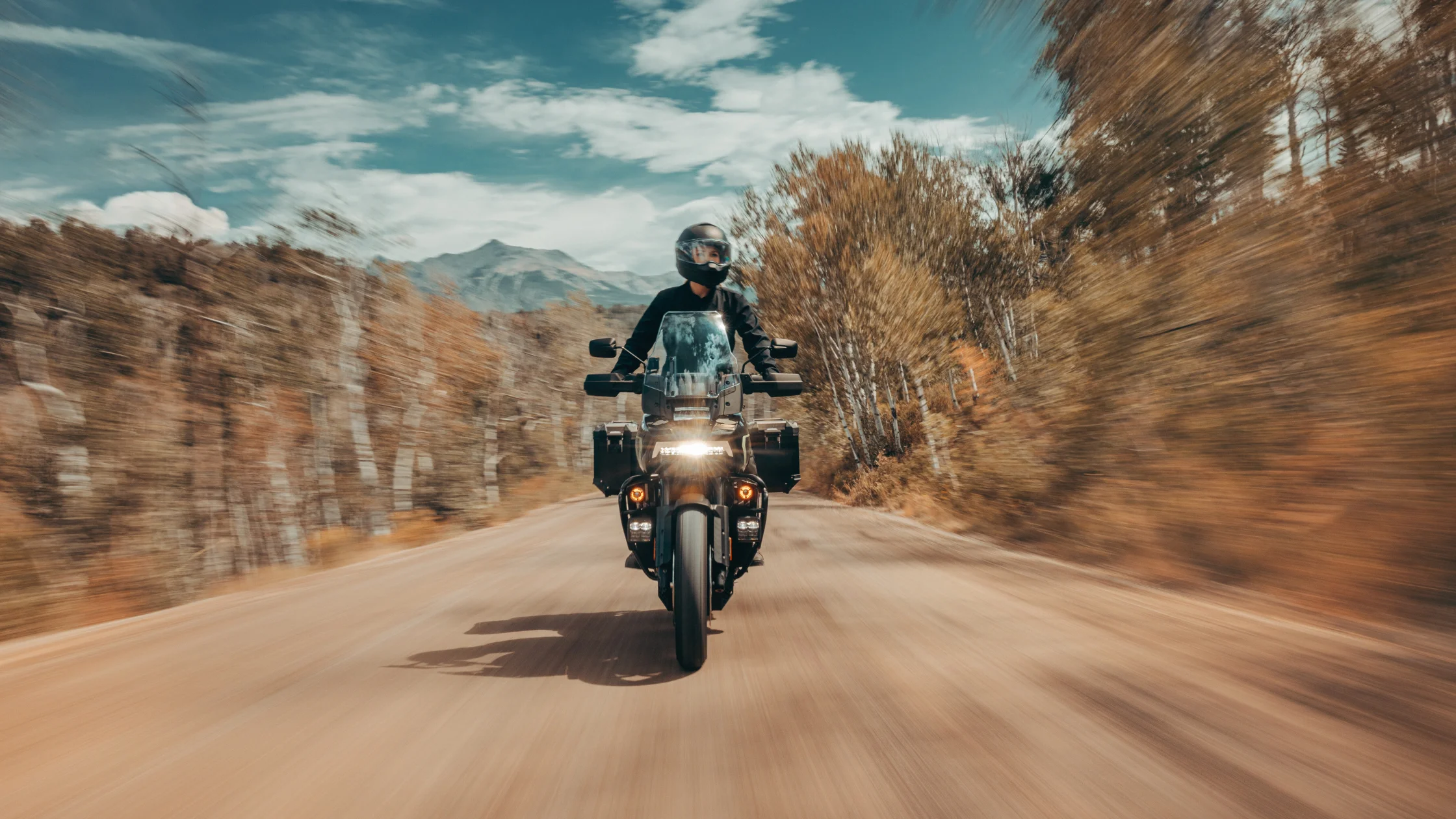

The 2026 Harley-Davidson® Pan America® 1250 Limited is engineered as an adventure touring motorcycle focused on measurable performance, structural rigidity, electronic control systems, and integrated rider technology. Its design emphasizes functional specifications, balancing engine output, chassis geometry, suspension intelligence, and electronic rider assistance. The model combines high power production with advanced mechanical and electronic systems that support stability, control, and adaptability across varying riding environments.
This motorcycle uses a modern engine platform, electronically controlled suspension, and a comprehensive collection of safety technologies designed to manage traction, braking, and rider input. Physical dimensions, wheel sizing, ground clearance, and riding geometry show deliberate engineering choices aimed at supporting both long-distance travel and controlled maneuverability. The following sections examine each technical area in detail, focusing strictly on verified specifications and mechanical characteristics.
Revolution® Max 1250 Engine Performance and Mechanical Design
The 2026 Harley-Davidson® Pan America® 1250 Limited uses the Revolution® Max 1250 engine, a liquid-cooled V-twin with a displacement of 1,252 cc. The bore measures 4.134 inches, while the stroke is 2.846 inches, resulting in a configuration designed to balance power output and high-rpm efficiency. The engine operates with a compression ratio of 13.0:1, supporting strong combustion efficiency and controlled power delivery.
Valve operation relies on a chain-driven dual overhead camshaft system with hydraulic self-adjusting lifters. Variable valve timing is applied to both intake and exhaust sides, allowing the engine to optimize airflow across different engine speeds. Each cylinder contains four valves, supporting efficient breathing and improved performance consistency throughout the RPM range.
Fuel delivery is managed through electronic sequential port fuel injection. This system improves fuel atomization and throttle accuracy. Air enters through a downdraft intake fitted with tuned velocity stacks and washable filter media. Exhaust gases flow through a 2-into-1-into-1 configuration that incorporates a catalyst in the header. Lubrication uses a semi-dry sump layout, supporting stable oil control during aggressive lean angles and extended riding conditions.
Certified output figures specify 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. These numbers show a performance-oriented engine tuned for both acceleration and sustained cruising. Torque availability in the midrange supports controlled power application during corner exits and loaded touring conditions. Engine torque testing follows J1349 standards, ensuring consistent measurement methodology.
Transmission, Gear Ratios, and Drivetrain Functionality
Power transfer occurs through a six-speed transmission designed to balance low-speed traction and highway efficiency. Overall gear ratios include 13.11 in first gear, gradually decreasing through 9.687 in second, 7.509 in third, 6.057 in fourth, 5.08 in fifth, and 4.436 in sixth. This spread allows controlled launches and stable cruising at higher speeds with reduced engine strain.
Primary drive uses a gear-based system with a 49/89 ratio, supporting consistent mechanical engagement. The final drive is chain-operated with a 19/48 ratio, providing durability and efficient power transfer to the rear wheel. The clutch system is mechanical and uses an eight-plate wet design with assist and slip functionality. Assist operation reduces lever effort, while slip characteristics help manage rear wheel behavior during sudden downshifts or rapid deceleration.
Chassis Structure and Dimensional Engineering
The chassis construction of the 2026 Harley-Davidson® Pan America® 1250 Limited uses a stressed-member configuration built from high-strength low-alloy steel. The trellis frame incorporates stamped, cast, and forged junctions connected through MIG welding techniques. An aluminum-forged mid-structure increases rigidity while helping manage overall mass distribution.
The wheelbase measures 62.2 inches, contributing to stability at speed. Steering geometry includes a 25-degree rake and a trail measurement of 4.3 inches, supporting balanced steering response and predictable handling characteristics. The overall length is 92.3 inches, with an overall width of 43.1 inches and an overall height of 59.4 inches.
Ground clearance is rated at 7.1 inches in standard configuration. When equipped with optional Adaptive Ride Height suspension, static ground clearance adjusts to 6.1 inches while dynamic clearance remains capable during motion. Seat height varies depending on configuration and suspension setup, allowing accommodation across a range of rider sizes. Unladen seat height with optional Adaptive Ride Height ranges from 32.1 to 33.1 inches, while laden measurements with the same system range from 30.4 to 31.4 inches.
Weight specifications include 626 pounds as shipped and 661 pounds in running order. Gross vehicle weight rating is 1,034 pounds, with front and rear axle limits specified at 399 and 665 pounds, respectively. These values establish load capacity for rider, passenger, and luggage.
Suspension Systems and Adaptive Ride Control
The front suspension uses a 47 mm inverted fork constructed with aluminum triple clamps. Electronically adjustable semi-active damping continuously adapts compression and rebound control based on riding conditions and vehicle inputs. Optional configurations include Adaptive Ride Height integration, which lowers ride height during stops and restores full travel during motion.
Rear suspension consists of a linkage-mounted monoshock featuring automatic electronic preload control and semi-active compression and rebound damping. Optional configurations add Adaptive Ride Height functionality to the rear system as well. Suspension travel measures 7.5 inches at both front and rear, supporting impact absorption and maintaining tire contact stability across uneven surfaces.
This electronically managed system adjusts damping response as conditions change, supporting consistent handling behavior and controlled chassis movement.
Wheel Configuration, Tire Specifications, and Handling Interface
The 2026 Harley-Davidson® Pan America® 1250 Limited uses a 19-inch front wheel and a 17-inch rear wheel. Standard wheels are aluminum cast units finished in satin black, while optional designs include anodized aluminum tubeless laced wheels. The front wheel width measures 3 inches, and the rear width measures 4.5 inches.
Tire fitment includes Michelin® Scorcher Adventure radial tires. The front tire specification is 120/70R19 60V, and the rear tire specification is 170/60R17 72V. This setup balances directional stability with cornering precision while supporting varied riding surfaces.
Lean angle capability is rated at 42 degrees on both the left and right sides, indicating a chassis design intended for stable cornering performance.
Braking Components and Integrated Control Systems
Front braking uses dual floating rotors with a radially mounted design and radially mounted monoblock four-piston calipers. Rotor diameter measures 12.6 inches with a thickness of 0.17 inches. Rear braking relies on a solid uniform expansion rotor measuring 11 inches in diameter with a thickness of 0.2 inches, paired with a floating single-piston caliper.
Anti-lock braking system functionality is standard. Electronic linked braking distributes braking forces between front and rear wheels for improved stability during deceleration. Together with advanced traction and lift management systems, braking performance integrates closely with vehicle dynamics control.
Electrical Systems, Lighting, and Rider Interface
Electrical power is supplied by a sealed absorbed glass mat battery rated at 12V and 17.5Ah with 310 cold cranking amps at 0°F. Charging capacity comes from a three-phase 45 amp system delivering 390 watts at 1,300 rpm and a maximum output of 585 watts at 2,500 rpm. Starting uses a 0.9 kW electric starter with direct drive engagement.
Lighting components include a Daymaker® Adaptive LED headlamp incorporating a six-segment LED banking lamp. Rear lighting uses an all-LED tail and stop lamp with signature illumination, while front and rear turn signals are LED bullet units. Auxiliary lamps function as fog lamps and driving beams, supporting visibility under reduced light conditions.
TFT Display, Connectivity, and Information Technology
The rider interface centers around a 6.8-inch TFT color touchscreen display. The screen presents the speedometer, gear position, odometer, fuel level, clock, trip information, ambient temperature, low temperature alert, side stand status, tip-over alert, range information, cruise control indication, and tachometer readings.
Bluetooth® connectivity allows phone pairing for call handling, media playback, and navigation through the H-D mobile application. USB-C functionality provides device charging and instrument updates with output ratings including 5V at 2.4 amps and 5V at 3A depending on function.
Vehicle information screens display tire pressure monitoring status, engine temperature, battery voltage, and ambient air temperature. Hands-free mobile phone support is included, and rider or passenger intercom functionality is headset-based when equipped.
Rider Safety Enhancements and Cornering Control Systems
The 2026 Harley-Davidson® Pan America® 1250 Limited includes a comprehensive package of rider safety technologies. Standard systems include anti-lock braking, electronic linked braking, traction control, drag-torque slip control, vehicle hold control, tire pressure monitoring, and wheel lift mitigation.
Additional cornering-enhanced systems adjust intervention based on lean angle. These include cornering enhanced anti-lock braking, cornering enhanced electronic linked braking, cornering enhanced traction control, and cornering drag-torque slip control. Enhanced lift mitigation also operates within this group. These systems coordinate braking pressure and engine management to maintain stability during directional changes and variable traction conditions.
Fuel Capacity, Efficiency, and Operational Range
Fuel capacity is rated at 5.6 gallons with a reserve warning capacity of approximately 1 gallon. Estimated fuel economy is listed at 46 miles per gallon. Oil capacity with filter is 4.75 quarts, while coolant capacity measures 2.32 quarts. These values support extended riding intervals and consistent thermal management.
Luggage capacity totals 4.24 cubic feet, supporting cargo storage requirements associated with adventure touring applications.
