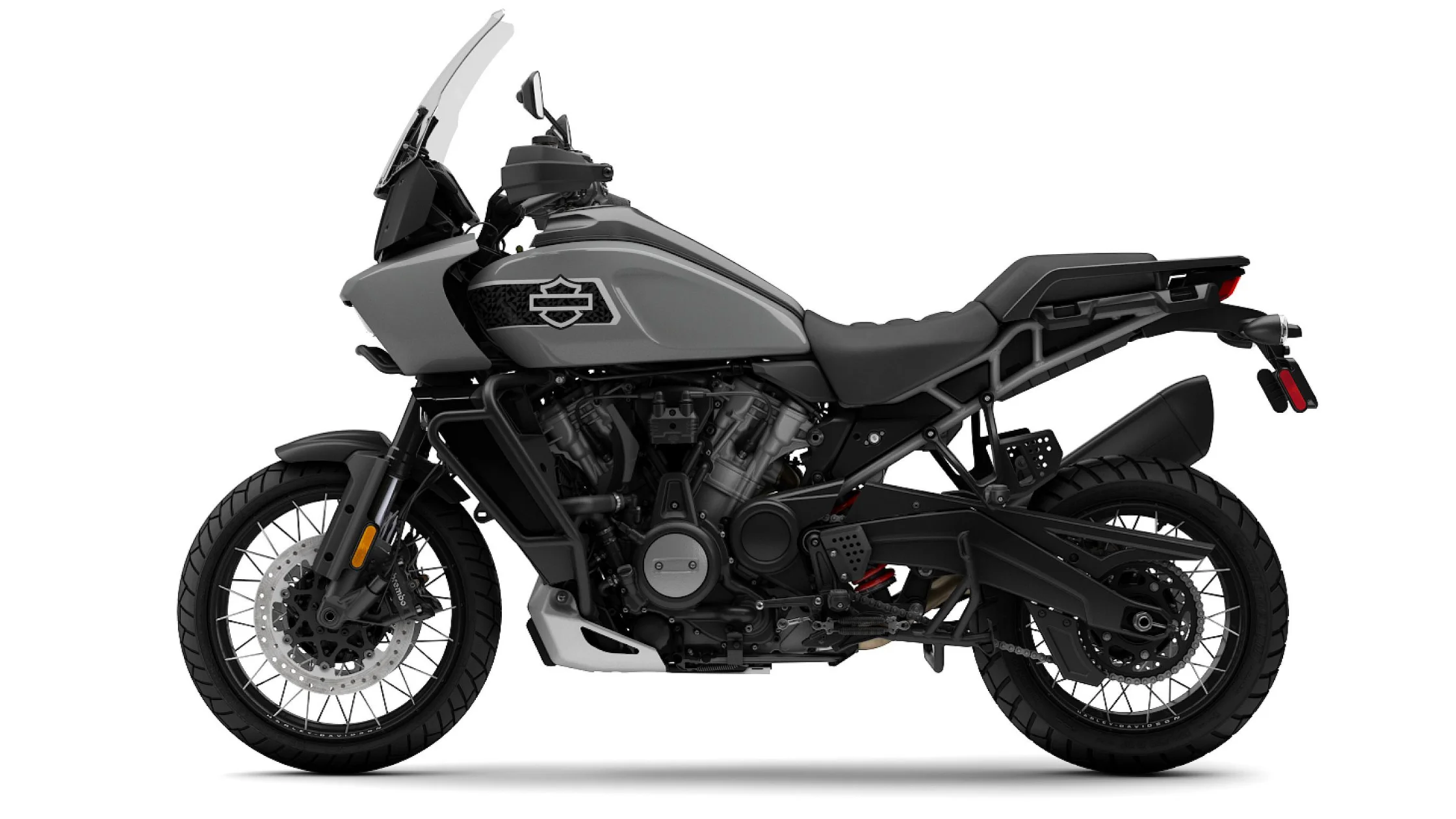

The 2026 Harley-Davidson® Pan America® 1250 Special is an adventure touring motorcycle engineered around the Revolution® Max 1250 powertrain, a lightweight stressed-member chassis, electronically controlled suspension systems, and a comprehensive suite of rider-assistance technologies. Designed to combine strong engine performance with advanced control systems, the model integrates modern electronic features, adjustable ergonomics, and long-travel suspension into a technically focused platform. Its specifications reflect a balance of power, handling capability, rider comfort, and connectivity features that support a broad range of riding conditions. From its variable valve timing engine architecture to its cornering-enhanced safety systems, the motorcycle incorporates numerous technologies intended to improve control, stability, and rider awareness.
Engine Design and Performance
The 2026 Harley-Davidson® Pan America® 1250 Special is powered by the Revolution® Max 1250 engine, a liquid-cooled powerplant with a displacement of 1,252 cc, or 76.4 cubic inches. The engine uses a chain-driven dual overhead camshaft configuration and incorporates hydraulic self-adjusting lifters for valve operation. Intake and exhaust variable valve timing are integrated into the design, allowing the engine to manage valve events across a broad operating range. Each cylinder contains four valves, contributing to the engine's airflow characteristics and combustion efficiency.
The engine features a bore of 4.134 inches and a stroke of 2.846 inches, paired with a compression ratio of 13.0:1. Fuel delivery is managed through Electronic Sequential Port Fuel Injection, providing controlled fuel metering throughout the operating range. Air enters through a downdraft intake system equipped with tuned velocity stacks and washable filter media. Exhaust gases exit through a 2-into-1-into-1 exhaust configuration with a catalyst located in the header assembly. Lubrication is handled by a semi-dry sump system designed to support consistent operation and engine durability.
Performance figures reflect the capability of the Revolution® Max 1250 platform. The engine produces a certified output of 150 horsepower, or 112 kW, at 8,750 rpm. Certified torque is rated at 94 ft-lb, or 127 Nm, and occurs at 6,750 rpm. These output figures demonstrate the engine’s ability to generate substantial power across the rev range while maintaining a strong torque curve. Combined with the motorcycle’s drivetrain and electronic control systems, the engine serves as the primary contributor to the 2026 Harley-Davidson® Pan America® 1250 Special’s performance characteristics.
Drivetrain and Transmission
The drivetrain of the 2026 Harley-Davidson® Pan America® 1250 Special is designed to efficiently transfer engine output to the rear wheel. Primary drive duties are handled through a gear-driven system utilizing a 49/89 ratio. Final drive power transmission occurs through a chain system using a 19/48 ratio. This arrangement provides a direct mechanical connection between the engine and rear wheel while supporting the motorcycle’s intended performance characteristics.
A mechanical eight-plate wet clutch with assist-and-slip functionality manages power delivery during acceleration and downshifting. The assist feature helps reduce clutch lever effort, while the slip function contributes to smoother transitions during aggressive deceleration and gear changes. These features work together to improve rider control and drivetrain refinement. The clutch assembly is designed to complement the engine’s torque output while supporting predictable operation.
The 6-Speed transmission provides a wide range of gear ratios. Overall ratios are listed as 13.11 in first gear, 9.687 in second gear, 7.509 in third gear, 6.057 in fourth gear, 5.08 in fifth gear, and 4.436 in sixth gear. This progression allows the motorcycle to manage varying speeds and operating conditions while maintaining efficient power delivery. The combination of the Revolution® Max 1250 engine, assist-and-slip clutch, and 6-Speed gearbox forms a cohesive powertrain package.
Chassis Architecture and Structural Engineering
The chassis of the 2026 Harley-Davidson® Pan America® 1250 Special employs a stressed-member design that integrates the engine into the overall structure. The frame uses high-strength low-alloy steel trellis construction with stamped, cast, and forged junctions. MIG-welded assembly methods are used throughout the structure, and the design incorporates an aluminum forged mid-structure. This combination of materials and manufacturing methods contributes to chassis rigidity while supporting overall vehicle dynamics.
A one-piece cast aluminum swingarm complements the frame structure. Together, these components establish the foundation for the motorcycle’s handling characteristics and suspension integration. The geometry of the motorcycle includes a 25-degree rake, a 25-degree fork angle, and 4.3 inches of trail.
The wheelbase measures 62.4 inches, creating a platform that supports stability and balanced weight distribution. Ground clearance figures include 6.9 inches in the standard configuration and 8.1 inches with Adaptive Ride Height. These measurements contribute to the motorcycle’s overall capability while maintaining compatibility with its suspension design. The chassis architecture serves as the structural framework that connects performance, handling, and rider-control systems.
Suspension Systems and Handling Characteristics
Suspension technology is a major component of the 2026 Harley-Davidson® Pan America® 1250 Special. The front suspension utilizes a 47 mm inverted fork equipped with electronically adjustable semi-active damping control. Aluminum fork triple clamps support the assembly and contribute to overall structural integrity. The electronically controlled damping system continuously manages suspension behavior through its semi-active design.
The rear suspension uses a linkage-mounted monoshock featuring automatic electronic preload control and semi-active compression and rebound damping. This system works in conjunction with the front suspension to create a balanced ride experience. Suspension travel measures 7.5 inches at both the front and rear. The matching travel figures support consistency across the chassis while allowing substantial wheel movement.
An optional Adaptive Ride Height configuration is available through specialized versions of the front and rear suspension components. This system incorporates Adaptive Ride Height functionality while retaining the electronically controlled semi-active damping characteristics. Seat height and ground-clearance specifications vary depending on the selected configuration.
Wheels, Tires, and Braking Components
The wheel and tire package contributes significantly to the motorcycle’s handling and stability. Standard wheels are satin black aluminum cast units with a 19-inch front diameter and a 17-inch rear diameter. Front wheel width measures 3 inches, while rear wheel width measures 4.5 inches. Optional anodized aluminum tubeless laced wheels are also available. These wheel configurations support the motorcycle’s suspension geometry and tire specifications.
The 2026 Harley-Davidson® Pan America® 1250 Special rides on Michelin® Scorcher Adventure radial tires. The front tire specification is 120/70R19 60V, while the rear tire specification is 170/60R17 72V. Tire dimensions are matched to the wheel package and chassis geometry to support handling characteristics. The motorcycle also features a lean angle capability of 42 degrees on both the right and left sides.
Braking performance is supported by a comprehensive hardware package. Front braking duties are handled by dual floating rotors paired with radially mounted monoblock four-piston calipers. Rear braking is managed by a floating single-piston caliper acting on a solid uniform expansion rotor. Front rotor diameter measures 12.6 inches, while the rear rotor measures 11 inches. The motorcycle also includes Anti-lock Braking System functionality as standard equipment.
Dimensions, Capacities, and Ergonomics
The 2026 Harley-Davidson® Pan America® 1250 Special measures 89.4 inches in length, 38.4 inches in width, and 59.4 inches in overall height. These dimensions establish the motorcycle’s physical footprint while supporting its adventure touring design. The model incorporates multiple seat-height configurations, allowing riders to select positions that best suit their preferences. This flexibility contributes to rider comfort and accessibility.
Laden seat height measures 31.1 inches in the low position and 32 inches in the high position. With optional Adaptive Ride Height suspension, these measurements become 30.4 inches and 31.4 inches, respectively. Unladen seat height ranges from 33.4 inches to 34.4 inches in standard form. With Adaptive Ride Height, unladen seat height ranges from 32.7 inches to 33.7 inches. These options provide meaningful ergonomic flexibility without altering the motorcycle’s core chassis design.
Fuel capacity is listed at 5.6 gallons, with a reserve fuel warning capacity of 1 gallon. Oil capacity with filter measures 4.75 quarts, while coolant capacity is 2.32 quarts. The motorcycle weighs 542 pounds as shipped and 578 pounds in running order. Gross Vehicle Weight Rating is 1,003 pounds, with front and rear axle ratings of 399 pounds and 665 pounds, respectively. These figures provide a detailed overview of the motorcycle’s operational capacities.
Electrical Systems and Rider Interface Technology
The electrical system is built around a sealed, maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 amp-hours, and 310 cold-cranking amps at 0°F. Charging functions are managed through a three-phase 45-amp system. Output is listed at 390 watts at 13 volts and 1,300 rpm, with maximum output reaching 585 watts at 13 volts and 2,500 rpm. This system supports the motorcycle’s electronic equipment, lighting systems, and rider-assistance technologies.
Starting duties are handled by a 0.9 kW electric starter with direct-drive engagement. Lighting equipment includes a Daymaker® Adaptive LED headlamp featuring a six-segment LED banking lamp. Rear illumination uses an all-LED tail and stop lamp with signature tail lighting. Front and rear turn indicators utilize LED Bullet Turn Signals. The all-LED lighting package supports visibility while maintaining a consistent lighting architecture throughout the motorcycle.
Instrumentation centers around a 6.8-inch TFT display with touch capability. The display presents speed, gear position, odometer information, fuel level, clock functions, trip information, ambient temperature, cruise information, range estimates, and tachometer data. Additional alerts include low-temperature notification, side-stand status indication, and tip-over alerts. The display serves as the primary interface between rider and vehicle systems while consolidating a wide range of operating information in a single location.
Connectivity and Information Systems
The 2026 Harley-Davidson® Pan America® 1250 Special incorporates Bluetooth®-enabled connectivity functions through its TFT display system. Riders can pair compatible devices to access phone functions, media features, and navigation through the H-D App. Bluetooth® phone and media support are integrated into the motorcycle’s electronic architecture.
Hands-free mobile phone capability is included as standard equipment. Bluetooth® headset compatibility supports rider and passenger intercom functionality through headset integration. The vehicle information display also provides access to Tire Pressure Monitoring System data, engine temperature readings, battery voltage information, and ambient air temperature.
USB-C connectivity supports charging and instrument updates. The motorcycle includes a USB-C power outlet with 5-volt output capability, while charging and instrument-update functionality are supported through USB-C at 5 volts and 3 amps. Text-to-speech language functionality remains dependent on the connected phone.
Rider Safety Enhancements
The 2026 Harley-Davidson® Pan America® 1250 Special includes a comprehensive collection of rider safety technologies designed to assist with braking, traction management, and vehicle control. Standard Rider Safety Enhancements include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-Torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems work together to help manage various riding conditions while supporting rider confidence and control.
The motorcycle also incorporates Cornering Rider Safety Enhancements that expand system functionality during cornering situations. Included technologies consist of Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. Enhanced Lift Mitigation is also included as part of this package.
