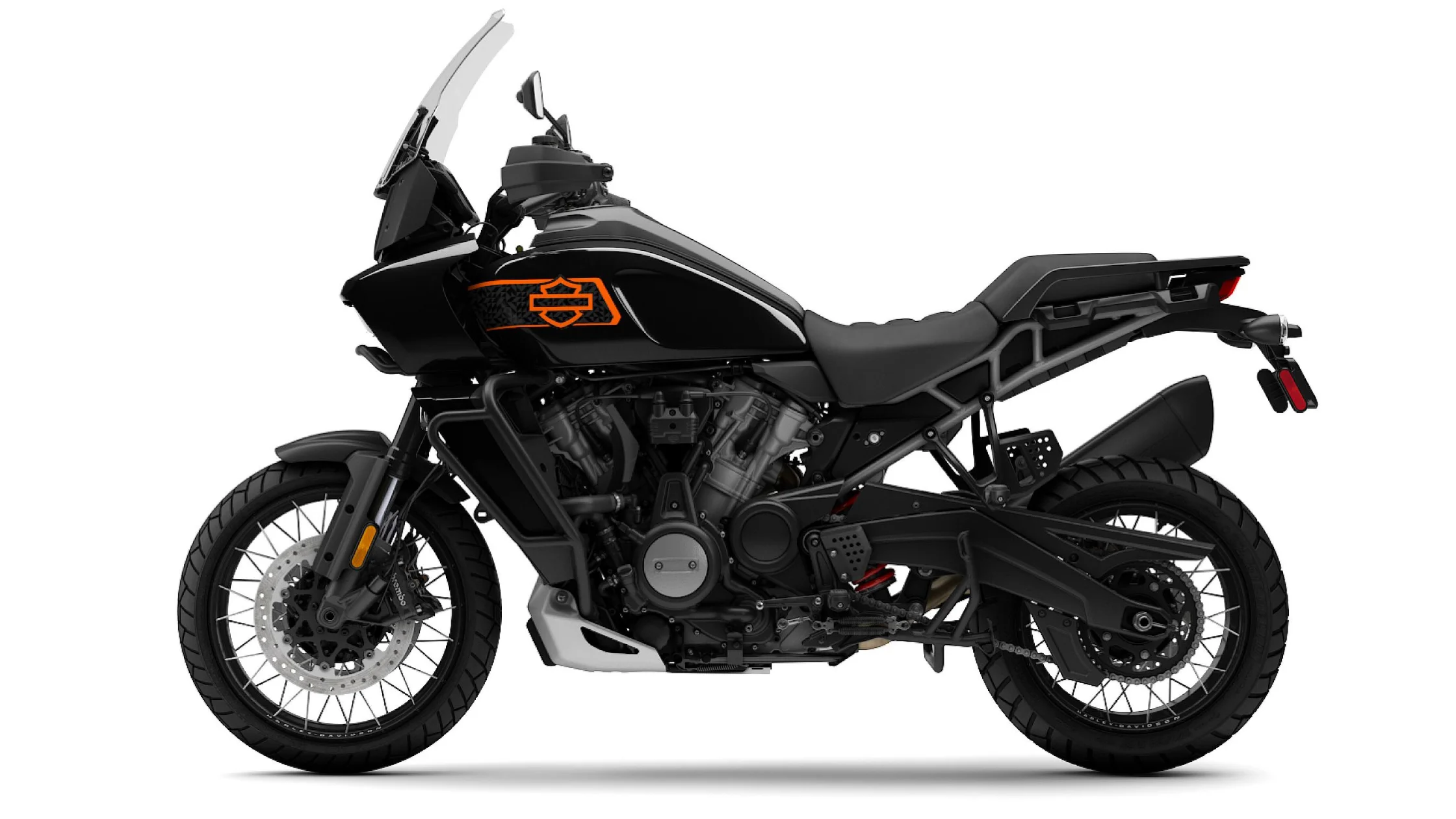

The 2026 Harley-Davidson® Pan America® 1250 Special is an adventure-focused motorcycle engineered to combine high-output performance, adaptable chassis behavior, and integrated rider technology within a single platform. The model uses a structural design that prioritizes balance between long-distance comfort and technical riding capability. Its specifications reflect deliberate engineering choices directed toward stability, control, and consistent performance across varied riding conditions.
The motorcycle measures 89.4 inches in length, 38.4 inches in overall width, and 59.4 inches in height. Wheelbase is set at 62.4 inches, supporting predictable handling and stability under load. Seat height settings vary according to adjustment and suspension configuration, ranging from approximately 31.1 inches to 34.4 inches depending on loaded or unloaded conditions. Ground clearance ranges from 6.9 inches to 8.1 inches with Adaptive Ride Height suspension, supporting off-pavement capability while maintaining balanced ergonomics. These dimensional specifications establish the structural baseline for rider positioning, suspension travel, and overall handling behavior.
Engine Architecture and Output Characteristics
The 2026 Harley-Davidson® Pan America® 1250 Special uses the Revolution® Max 1250 engine, a liquid-cooled power unit designed with dual overhead camshafts and four valves per cylinder. The valve system incorporates hydraulic self-adjusting lifters and variable valve timing on both intake and exhaust sides, allowing consistent airflow management across different engine speeds. The bore measures 4.134 inches, and the stroke measures 2.846 inches, resulting in a displacement of 1,252 cc. The compression ratio is rated at 13.0:1, supporting efficient combustion and strong performance characteristics.
Fuel delivery relies on Electronic Sequential Port Fuel Injection, which controls mixture precision and improves throttle response. Air enters through a downdraft intake design with tuned velocity stacks and washable filter media, supporting efficient intake flow and serviceability. Exhaust routing follows a 2-into-1-into-1 configuration with catalyst placement integrated into the header. Lubrication uses a semi-dry sump system, which helps maintain oil circulation stability during aggressive acceleration or directional changes.
Output figures include 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. These numbers indicate a performance profile that supports strong midrange acceleration combined with sustained high-rpm capability. The engine configuration emphasizes broad usability rather than single-point output, allowing consistent performance for touring, highway operation, and off-road riding scenarios.
Transmission, Gear Ratios, and Drivetrain Integration
Power transfer occurs through a six-speed transmission calibrated for mixed riding environments. Gear ratios progress from a lower first gear ratio of 13.11 to a sixth gear ratio of 4.436, creating spacing suited for low-speed control and higher-speed cruising efficiency. The transition between ratios supports steady power delivery while minimizing abrupt changes in engine response.
The primary drive uses a gear-based system with a 49/89 ratio, while the final drive employs a chain with a 19/48 ratio. The clutch is a mechanical eight-plate wet design that incorporates assist and slip functionality. Assist functionality reduces lever effort during operation, while slip capability improves stability during aggressive downshifting by managing rear wheel feedback. This drivetrain combination supports controlled power application and predictable performance under varying rider input and terrain conditions.
Chassis Engineering and Structural Design
The frame design uses a stressed-member approach combining high-strength low-alloy steel trellis construction with stamped, cast, and forged junctions. Aluminum forged elements are integrated into the mid-structure to reduce mass while maintaining rigidity. The structural layout distributes loads efficiently and allows the engine to contribute to overall chassis stiffness.
The swingarm is constructed as a one-piece cast aluminum component, providing strength and reduced flex under acceleration. Rake is measured at 25 degrees with a trail at 4.3 inches, a geometry that supports a balanced steering response. These measurements contribute to stable directional control while maintaining maneuverability at lower speeds.
Weight figures include 542 pounds as shipped and 578 pounds in running order. Gross vehicle weight rating is listed at 1,003 pounds, with front axle load rated at 399 pounds and rear axle load rated at 665 pounds. These ratings define load capacity and structural tolerances intended for touring or cargo-bearing setups.
Suspension Systems and Adaptive Ride Capability
Suspension technology represents a significant technical component of the 2026 Harley-Davidson® Pan America® 1250 Special. The front uses a 47 mm inverted fork featuring electronically adjustable semi-active damping control. Aluminum triple clamps support steering precision and structural integrity. The rear suspension consists of a linkage-mounted monoshock with automatic electronic preload adjustment and semi-active compression and rebound control.
An optional Adaptive Ride Height system modifies suspension height automatically during stopping and low-speed operation. This function lowers ride height for easier footing and returns to standard geometry during motion. Suspension travel measures 7.5 inches front and rear, supporting absorption of uneven terrain while maintaining controlled chassis movement.
Electronic adjustment capabilities allow damping characteristics to respond to riding inputs and surface conditions. Automatic preload management also supports consistent handling when rider load or luggage changes. The suspension system focuses on maintaining tire contact and improving ride stability across a variety of conditions.
Wheels, Tires, and Braking Configuration
Wheel dimensions include a 19-inch front and 17-inch rear setup. Standard wheels are aluminum cast with a satin black finish, while optional anodized aluminum tubeless laced wheels are available. Front wheel width measures 3 inches and rear width measures 4.5 inches, providing balanced stability and traction management.
Tire equipment consists of Michelin® Scorcher Adventure radial tires. Front specification is 120/70R19 60V and rear specification is 170/60R17 72V. These tire dimensions support mixed-surface riding while maintaining predictable handling during cornering and braking.
Front braking uses dual floating rotors with a diameter of 12.6 inches paired with radially mounted monoblock four-piston calipers. Rear braking uses a single 11-inch rotor with a floating single-piston caliper. The Anti-lock Braking System is standard equipment. Brake rotor thickness measures 0.17 inches at the front and 0.2 inches at the rear. The braking system is engineered for consistent stopping performance with balanced front-to-rear control.
Electrical System and Rider Interface Technology
The electrical system includes a sealed maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 amp-hours, and 310 cold-cranking amps at zero degrees Fahrenheit. Charging capacity comes from a three-phase 45-amp system producing up to 585 watts at higher engine speeds. Starting operates through a 0.9 kW electric starter motor using direct-drive engagement.
Lighting uses full LED implementation. The headlamp is a Daymaker® Adaptive LED unit with a six-segment banking lamp designed to maintain visibility during cornering. Tail and stop lighting are LED-based, and turn signals use LED bullet-style units front and rear.
Instrumentation centers around a 6.8-inch TFT display with touch capability. The display provides speed, gear position, odometer, trip data, fuel level, ambient temperature, and range information. Additional alerts include side stand position and tip-over warnings. Bluetooth® connectivity supports phone pairing for calls, media, and navigation through the Harley-Davidson® mobile application. USB-C charging is integrated, providing 5-volt output for device charging and instrument updates.
Performance Metrics and Operational Efficiency
Certified performance testing lists engine torque at 94 ft-lb and power output at 150 horsepower. Lean angle capability reaches 42 degrees on both the left and right sides, indicating clearance and chassis control suitable for aggressive cornering. Engine torque testing follows J1349 standards, while lean angle measurements follow J1168 procedures.
Fuel capacity is rated at 5.6 gallons, with a reserve fuel warning at approximately one gallon. Estimated fuel economy is listed at 46 mpg under city and highway conditions. Oil capacity with a filter is 4.75 quarts, while coolant capacity is 2.32 quarts. These operational specifications support long-distance use with defined service intervals.
Rider Safety Enhancements and Control Systems
The motorcycle includes a comprehensive set of rider assistance systems designed to support stability and traction control. Standard systems include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-Torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems coordinate braking and engine management functions to maintain predictable handling.
Cornering-specific features include Cornering Enhanced ABS, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control, and Cornering Drag-Torque Slip Control. Enhanced Lift Mitigation is also included. These features adjust intervention levels according to lean angle and chassis orientation, supporting consistent control during directional changes and varied traction conditions.
