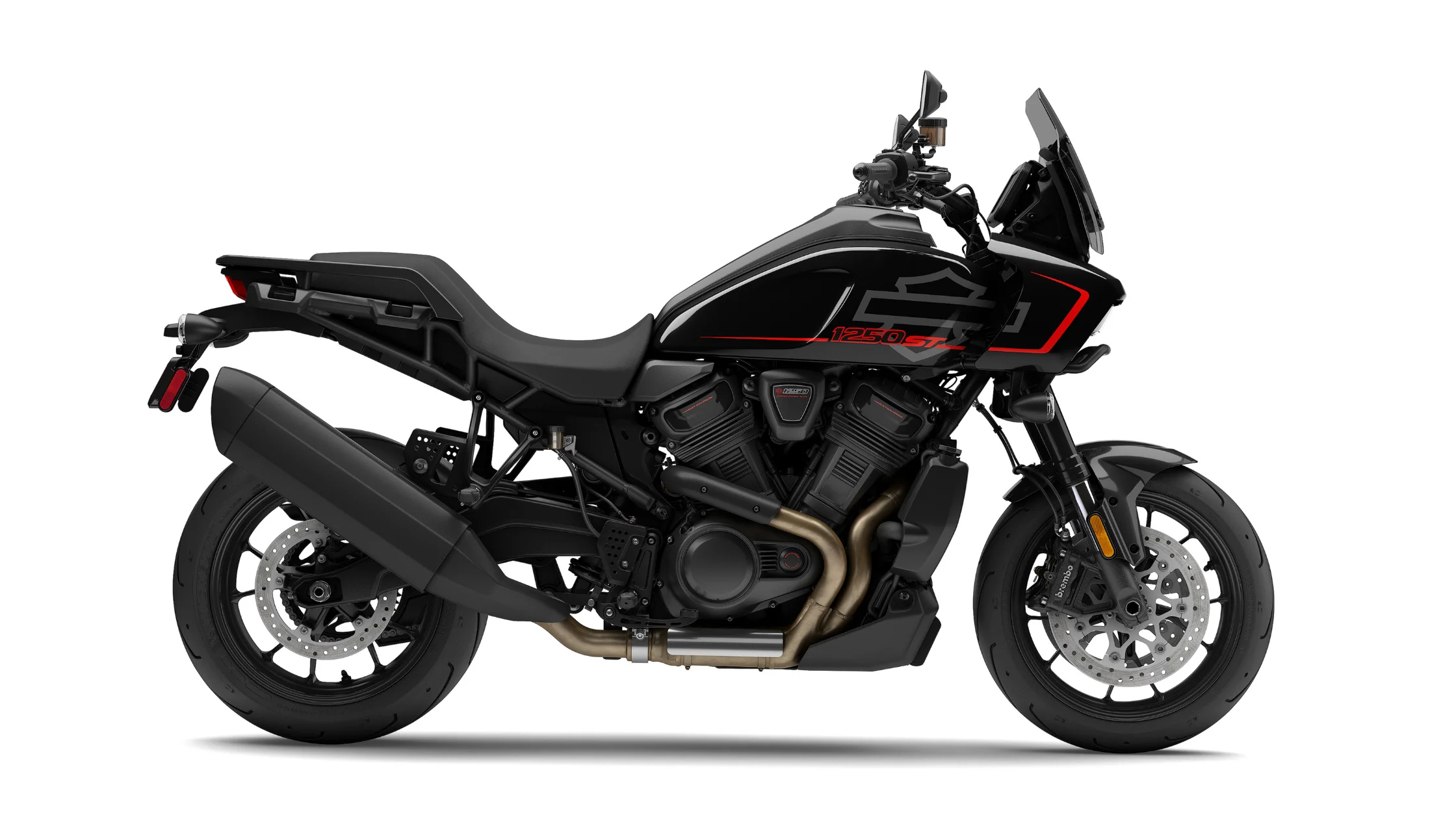

The 2026 Harley-Davidson® Pan America® 1250 ST is designed as a performance-focused motorcycle that combines sport-oriented handling with advanced engineering systems. Its configuration emphasizes controlled power delivery, precise chassis geometry, electronic rider assistance, and integrated technology. The motorcycle uses a structural design that blends a high-output liquid-cooled engine with a lightweight frame and electronically managed suspension, producing a platform intended for consistent performance on paved roads.
Dimensions and geometry support this purpose. The overall length measures 88.2 inches, with a width of 35.3 inches and a height of 52.4 inches. The wheelbase of 62.2 inches contributes to stability, while a 25-degree steering head angle and 3.7-inch trail support predictable steering response. Static ground clearance measures 6.7 inches, maintaining balanced cornering capability and controlled chassis movement. Weight figures include 511 pounds as shipped and 546 pounds in running order, representing a configuration optimized for structural rigidity and responsive handling.
Revolution® Max 1250 Engine Configuration and Output
The motorcycle uses the Revolution® Max 1250 engine, a liquid-cooled V-twin designed for performance efficiency and mechanical precision. The engine displacement is 1,252 cc, achieved through a bore of 4.134 inches and a stroke of 2.846 inches. A high 13.0:1 compression ratio supports strong combustion efficiency and responsive acceleration. The valve train features chain-driven dual overhead cams with hydraulic self-adjusting lifters, along with variable valve timing on intake and exhaust valves. This arrangement allows consistent airflow control across the rev range.
Power output is rated at 150 horsepower at 8,750 rpm, and torque output is measured at 94 ft-lb at 6,750 rpm. These figures indicate an engine tuned for sustained high-rev performance while preserving midrange torque. The fuel system uses Electronic Sequential Port Fuel Injection, enabling precise fuel delivery. Intake airflow is managed by a downdraft system with tuned velocity stacks and washable filter media, supporting consistent combustion and airflow stability.
The exhaust system follows a 2-into-1-into-1 configuration with a catalyst positioned in the header. Lubrication relies on a semi-dry sump system designed to maintain reliable oil distribution during aggressive cornering and acceleration. These engineering choices support thermal stability, durability, and consistent performance under varying riding loads.
Transmission, Clutch, and Drivetrain Engineering
Power transfer is managed through a 6-speed transmission paired with a mechanically assisted and slip-controlled eight-plate wet clutch. The clutch design reduces lever effort while helping control rear-wheel stability during rapid downshifts. The primary drive uses a gear configuration with a 49/89 ratio, while the final drive operates through a chain system with a 19/48 ratio.
Gear ratios are structured to balance acceleration and sustained cruising. First gear is designed for controlled launches, while ratios progressively tighten through the transmission to maintain smooth power transitions. Sixth gear provides reduced engine strain at highway speeds, supporting fuel efficiency and stable operation during long-distance riding.
This drivetrain configuration contributes to predictable throttle response and mechanical efficiency. The gear-driven primary section and chain final drive emphasize direct power delivery, supporting the motorcycle’s sport-oriented riding characteristics.
Frame Architecture and Chassis Construction
The chassis uses a stressed-member design in which the engine contributes to structural rigidity. The frame consists of high-strength, low-alloy steel trellis construction combined with stamped, cast, and forged junctions. MIG welding techniques and an aluminum forged mid-structure improve stiffness while minimizing excess weight.
A one-piece cast aluminum swingarm supports rear-wheel alignment and contributes to predictable suspension behavior. This configuration provides stable tracking during acceleration and controlled chassis response through corners. The overall geometry is tuned to balance agility and stability, allowing smooth transitions between lean angles while maintaining rider confidence.
Suspension systems are electronically enhanced. The front features a 47 mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound damping. Aluminum fork triple clamps add rigidity and assist steering precision. The rear uses a linkage-mounted monoshock with automatic electronic preload control, combined with manual compression and rebound adjustments. Suspension travel measures 6.7 inches front and rear, supporting comfort and stability across varied road surfaces.
Wheels, Tires, and Braking Systems
The 2026 Harley-Davidson® Pan America® 1250 ST uses aluminum cast wheels finished in satin black. Both front and rear wheel diameters measure 17 inches, with widths of 3.5 inches at the front and 5.5 inches at the rear. This configuration supports sport-oriented tire profiles and quick handling response.
Tire specifications include Michelin® Scorcher Sport tires, sized 120/70ZR17 at the front and 180/55ZR17 at the rear. These dimensions support strong road grip and consistent feedback during lean transitions. The tire selection aligns with the motorcycle’s street-focused design, emphasizing traction and stability on pavement.
Braking performance relies on front dual floating rotors measuring 12.6 inches paired with radially mounted monoblock four-piston calipers. The rear uses an 11-inch solid rotor with a floating single-piston caliper. Anti-Lock Braking System functionality is standard, supporting controlled braking under reduced traction conditions. The dual front setup provides high braking force and improved lever modulation, while the rear system contributes to stability and balanced stopping performance.
Performance Metrics and Dynamic Capability
Performance measurements reflect the motorcycle’s road-oriented setup. Engine torque testing follows J1349 standards, and lean angle testing follows J1168 methodology. Maximum lean angles reach 37 degrees on both the left and right sides, indicating cornering clearance suitable for aggressive street riding.
Fuel capacity is rated at 5.6 gallons, with a reserve warning activating at approximately 1 gallon. Fuel economy is estimated at 46 mpg, supporting extended riding range without frequent refueling. Oil capacity measures 4.75 quarts with filter, and coolant capacity is listed at 2.32 quarts. These capacities support consistent thermal management and lubrication under sustained operation.
Gross vehicle weight rating is listed at 1,003 pounds, with front and rear axle ratings of 399 and 665 pounds, respectively. These values define load distribution limits and structural capacity for rider and cargo use.
Electrical System and Lighting Technology
Electrical systems are designed to support both performance requirements and integrated electronics. The motorcycle uses a sealed maintenance-free absorbed glass mat battery rated at 12V and 17.5Ah, with 310 CCA at 0°F. Charging is managed through a three-phase 45-amp system capable of producing up to 585 watts at higher engine speeds.
Starting is handled by a 0.9 kW electric system with direct-drive engagement. Lighting systems use LED technology throughout. The headlamp features a Daymaker® Adaptive LED unit, which improves visibility through lean-sensitive illumination adjustment. Tail and stop lamps use LED signature lighting, and front and rear turn signals use LED bullet-style indicators for consistent signal visibility.
This fully LED configuration reduces power consumption while maintaining bright, clear output across varying riding conditions.
Digital Interface and Connectivity Systems
The motorcycle includes a 6.8-inch TFT touchscreen display that serves as the primary interface for vehicle information and rider interaction. The screen displays speedometer data, gear position, odometer readings, fuel level, clock, trip metrics, ambient temperature, and range. Additional alerts include low-temperature notifications, side-stand warnings, tip-over alerts, and cruise indication.
Bluetooth® capability allows phone pairing for calls, music, and navigation functions through the Harley-Davidson® mobile application. USB-C charging supports device charging and instrument updates. Vehicle information shown on the display includes tire pressure monitoring data, engine temperature, battery voltage, and ambient air temperature.
The system prioritizes clear data presentation and functional operation, allowing riders to access essential information without unnecessary interface complexity.
Rider Safety Enhancements and Electronic Control Systems
Safety systems on the 2026 Harley-Davidson® Pan America® 1250 ST integrate multiple electronic controls to assist stability and traction management. Standard features include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation.
Cornering-specific systems expand control by adjusting intervention based on lean angle. These include Cornering Enhanced ABS, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control, and cornering-enabled drag-torque slip control. Enhanced lift mitigation functions also support controlled acceleration and stability.
These systems operate through sensor-driven monitoring and calibrated intervention to maintain traction and directional control. The objective is to support rider input while reducing unwanted instability during acceleration, braking, or cornering.
Ergonomics, Dimensions, and Riding Position
Seat height measurements vary depending on suspension configuration. With optional Adaptive Ride Height suspension in the low position, laden seat height measures 29.4 inches and unladen height measures 31.7 inches. Ground clearance remains at 6.7 inches, maintaining lean angle capability and suspension travel consistency.
The overall layout supports an upright riding posture intended to improve visibility and rider comfort during extended operation. The relationship between handlebar positioning, seat height, and chassis geometry supports controlled maneuvering at low speeds while maintaining stability at higher speeds.
The motorcycle’s balance between weight distribution, wheelbase length, and steering geometry contributes to predictable handling characteristics across commuting, touring, and performance-oriented riding conditions.
