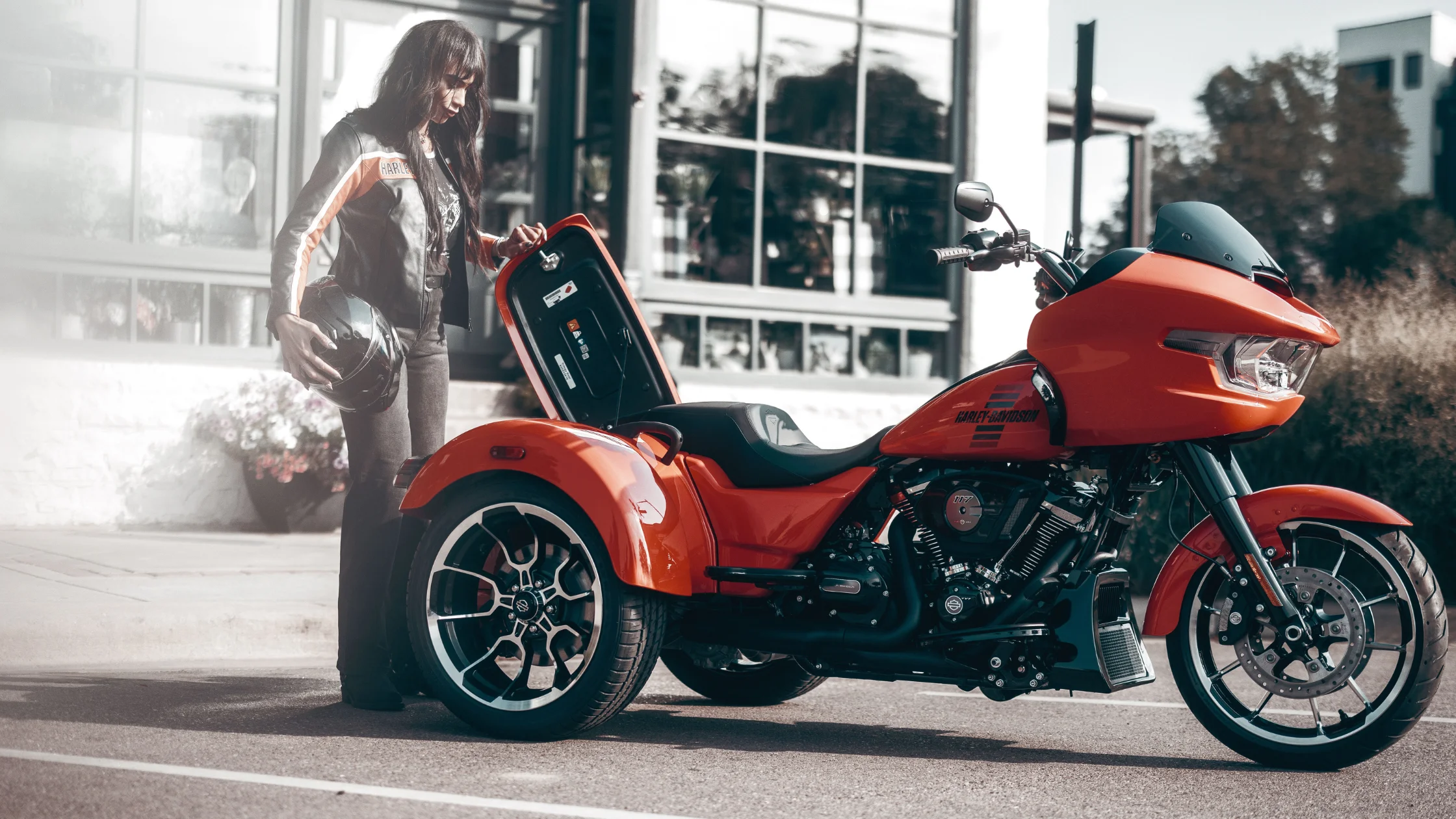

The 2026 Harley-Davidson® Road Glide® 3 combines a three-wheel touring platform with a large-displacement V-twin engine, integrated rider-assist technology, and a full infotainment interface. The model uses the Milwaukee-Eight® VVT 117 engine paired with a 6-Speed Cruise Drive® transmission with reverse. It also incorporates electronic rider safety systems, a fixed fairing design, cast aluminum wheels, and integrated digital instrumentation. The chassis dimensions, suspension configuration, and braking systems are engineered to support touring use, rider stability, and low-speed maneuverability. The 2026 Harley-Davidson® Road Glide® 3 also includes embedded navigation, Bluetooth® connectivity, USB-C integration, and cornering-enhanced rider safety technologies as standard equipment.
Milwaukee-Eight® VVT 117 Engine Configuration
The 2026 Harley-Davidson® Road Glide® 3 uses the Milwaukee-Eight® VVT 117 engine with a displacement of 117 cubic inches, or 1,923 cc. The engine produces 105 horsepower at 4,600 rpm and 129 ft-lb of torque at 3,250 rpm. Torque output is measured using the J1349 testing method.
The engine uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. Bore measures 4.075 inches, while stroke measures 4.5 inches. The compression ratio is rated at 10.3:1. The engine incorporates variable valve timing technology to support throttle response and operating efficiency across different rpm ranges.
Fuel delivery is managed by Electronic Sequential Port Fuel Injection. The intake system uses a washable paper air cleaner, and exhaust routing is handled through a 2-1-2 dual exhaust system. Lubrication is controlled by a pressurized dry-sump lubrication system. Harley-Davidson® recommends 91-octane or higher fuel for operation.
Six-Speed Transmission and Reverse Functionality
The drivetrain configuration combines the Milwaukee-Eight® VVT 117 engine with a 6-Speed Cruise Drive® transmission. The transmission includes reverse functionality operated through handlebar-mounted controls. This feature assists with maneuvering during parking and low-speed directional changes.
Primary drive uses a chain with a 34/46 ratio. Final drive uses a belt with a 30/70 ratio. Clutch operation is managed through a mechanically actuated 10-plate wet Assist & Slip clutch assembly.
Overall gear ratios are configured for touring operation and controlled acceleration. First gear uses a 10.534 ratio, second gear uses a 7.302 ratio, third gear uses a 5.423 ratio, fourth gear uses a 4.392 ratio, fifth gear uses a 3.742 ratio, and sixth gear uses a 3.000 ratio. These ratios support low-speed control and reduced engine rpm during highway operation.
Touring Dimensions and Structural Layout
The 2026 Harley-Davidson® Road Glide® 3 measures 103 inches in overall length and 57.5 inches in overall width. Overall height is listed at 51.4 inches. The wheelbase measures 67.7 inches. The motorcycle uses a 26-degree steering head rake combined with a 32-degree fork angle and 3.8 inches of trail.
Seat height in laden configuration is 26.5 inches. Unladen seat height measures 27.9 inches. Static ground clearance is rated at 5.5 inches. These dimensions contribute to rider accessibility and chassis balance during operation.
The motorcycle has a running-order weight of 1,184 pounds and a shipped weight of 1,146 pounds. Gross Vehicle Weight Rating is listed at 1,700 pounds. Front Gross Axle Weight Rating measures 511 pounds, while rear Gross Axle Weight Rating measures 1,189 pounds.
Fuel capacity is rated at 6 gallons. Reserve fuel capacity linked to the warning light system is 1 gallon. Oil capacity with filter measures 5 quarts. Transmission capacity and primary chain case capacity each measure 1.1 quarts. Coolant capacity measures 0.82 quarts.
Chassis Engineering and Suspension Components
The chassis uses a mild steel square-section backbone frame with twin downtubes. Rear structural support is managed through a permanent mold cast aluminum swingarm.
Front suspension uses a 49 mm dual bending valve fork with 4.6 inches of travel. Rear suspension uses hand-adjustable emulsion rear shocks with 3.5 inches of travel. The suspension system is configured to support touring operation and load management across varying road surfaces.
The 2026 Harley-Davidson® Road Glide® 3 uses gloss black and machined 5-spoke cast aluminum wheels. The front wheel diameter measures 19 inches with a width of 3.5 inches. Rear wheel diameter measures 18 inches with a width of 7 inches.
Front tire specification is MT 130/60B19 M/C 61H. Rear tire specification is P215/45R18 83T. Tire construction uses a Dunlop® Harley-Davidson® Series bias blackwall front tire combined with radial blackwall rear tires.
Braking Hardware and Stability Systems
The braking system incorporates dual floating front rotors and a fixed rear rotor. Front braking uses 32 mm 4-piston fixed calipers. Rear braking uses a floating 36 mm piston integrated park brake configuration.
The front brake rotor diameter measures 11.8 inches with a thickness of 0.197 inches. The rear brake rotor diameter also measures 11.8 inches with a thickness of 0.276 inches. A dual front braking configuration is standard.
An anti-lock braking system is included as standard equipment. Electronic Linked Braking is also integrated into the braking system to coordinate braking distribution between the front and rear assemblies.
The 2026 Harley-Davidson® Road Glide® 3 also includes a Traction Control System and Drag-torque Slip Control System. The Tire Pressure Monitoring System is integrated into the vehicle electronics package to provide tire pressure data during operation.
Cornering Rider Safety Technologies
The 2026 Harley-Davidson® Road Glide® 3 includes multiple cornering-enhanced rider safety systems. Cornering Enhanced Anti-lock Brake System adjusts brake modulation during cornering operation. Cornering Enhanced Electronic Linked Braking coordinates braking force based on lean-sensitive vehicle inputs.
Cornering Enhanced Traction Control System manages rear wheel traction during acceleration under changing traction conditions. Cornering Drag-torque Slip Control System assists with rear wheel management during deceleration and downshifting.
Electrical Output and Lighting Systems
The electrical system uses a sealed maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. Charging is managed through a three-phase 48-amp system rated at 600 watts at 13 volts and 2,000 rpm. Maximum output is listed at 625 watts at 13 volts.
Starting operation uses a 1.6 kW electric starter with solenoid shift starter motor engagement.
Lighting components use LED technology throughout the motorcycle. LED systems are used for the headlamp, tail and stop lamps, front signal lamps, and rear turn signals. The electrical system also includes a 15-watt USB-C accessory power outlet located in the media storage compartment.
Skyline™ OS Infotainment Interface
The infotainment system uses Skyline™ OS paired with a 12.3-inch full-color TFT display. The display functions as the primary interface for rider information, audio controls, navigation, and vehicle data.
Audio output is managed through a two-speaker configuration with 50 watts per channel. Speaker size measures 5.25 inches. AM and FM radio functionality are included as standard equipment.
Media compatibility includes SD card, flash drive, and MP3 functionality through USB connection. Bluetooth® capability supports phone, media player, and headset integration. Hands-free mobile phone operation through Bluetooth® is standard.
The 2026 Harley-Davidson® Road Glide® 3 supports Apple CarPlay® through wireless or wired connection methods. USB-C and MTP smartphone integration are compatible with supported mobile devices connected through the inner fairing storage compartment.
The infotainment system also includes embedded navigation with traffic and weather support through Wi-Fi Hotspot connectivity. Vehicle information displays include air temperature, oil pressure, and Engine Idle Temperature Management System information.
Rider and passenger intercom compatibility is supported with Harley-Davidson® headset equipment. Voice-operated exchange capability is available for compatible headsets.
Touring Utility and Integrated Storage
The 2026 Harley-Davidson® Road Glide® 3 includes integrated luggage capacity rated at 2 cubic feet. The storage system is incorporated into the touring platform design to support the transportation of riding equipment and travel items.
The motorcycle also includes electric reverse functionality, integrated infotainment controls, navigation support, and USB-C device charging capability.
The three-wheel platform combines with the large touring chassis to support stability during stopped operation, parking maneuvers, and low-speed directional control. The wide rear wheel arrangement and integrated rear braking system are configured to maintain consistent vehicle balance during loaded operation.
