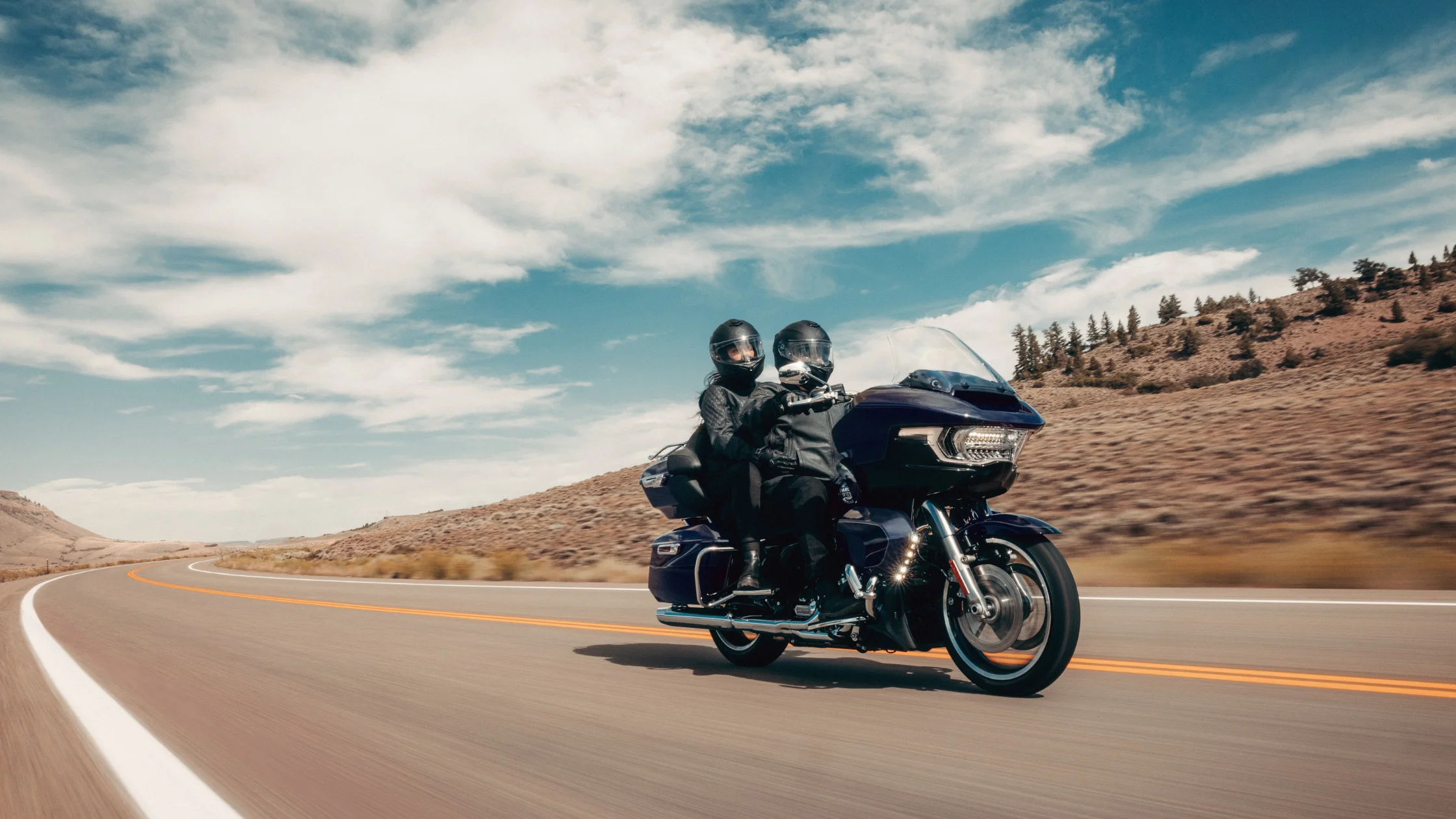

The 2026 Harley-Davidson® Road Glide® Limited is engineered as a fully integrated touring motorcycle with a focus on measurable performance, structural stability, and comprehensive rider technology. This model combines a large-displacement Milwaukee-Eight® VVT 117 engine, a six-speed drivetrain, a rigid touring chassis, and an extensive infotainment and safety system package. Its specifications reflect a design intended for sustained highway operation, passenger and cargo capacity, and consistent rider control across varying conditions.
Engine Architecture and Output Specifications
The 2026 Harley-Davidson® Road Glide® Limited uses the Milwaukee-Eight® VVT 117 engine, which has a displacement of 117 cubic inches or 1,923 cubic centimeters. The engine is built with pushrod-operated overhead valves and hydraulic self-adjusting lifters, along with four valves per cylinder. The bore measures 4.075 inches, and the stroke measures 4.5 inches. The compression ratio is set at 10.3:1, supporting a balance between performance output and efficiency.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The engine includes a fiberglass washable air cleaner and a 2-1-2 dual exhaust system with tapered mufflers. Lubrication is handled by a pressurized dry-sump system, which supports consistent oil distribution under extended operation.
Performance output is rated at 131 foot-pounds of torque at 3,250 rpm and 106 horsepower at 4,600 rpm. These figures indicate strong midrange performance characteristics, which are necessary for a touring motorcycle operating with additional weight from passengers and cargo. The torque delivery supports acceleration from lower engine speeds and reduces the need for frequent gear changes during highway travel.
Drivetrain Configuration and Gear Ratios
The drivetrain includes a six-speed Cruise Drive® transmission paired with a chain primary drive and a belt final drive. The primary drive ratio is 34/46, while the final drive ratio is 32/68. This configuration is designed to balance durability and efficiency for extended mileage use.
The clutch is a mechanically actuated 10-plate wet system with assist and slip functionality. This design reduces lever effort and supports smoother engagement during shifting. The gear ratios are structured to provide a wide operating range. First gear has an overall ratio of 9.593, while sixth gear has an overall ratio of 2.875. Intermediate gears are spaced progressively, with the second at 6.65, the third at 4.938, the fourth at 4, and the fifth at 3.407.
Chassis Geometry and Structural Design
The frame is constructed from mild steel using a tubular structure with a two-piece stamped and welded backbone. It includes cast and forged junctions and twin down-tubes. The rear frame is bolt-on with forged fender supports, and all sections are MIG-welded. The swingarm is also made from mild steel with a two-piece drawn and welded section and forged junctions.
The motorcycle has a wheelbase of 64 inches. Steering geometry includes a rake angle of 26 degrees, a fork angle of 29.25 degrees, and a trail measurement of 6.8 inches. These dimensions are selected to support directional stability and predictable steering response.
The overall length is 103.1 inches, the width is 40.7 inches, and the height is 57 inches. Seat height is 27.5 inches in a laden condition and 29 inches unladen. Static ground clearance is measured at 5.1 inches. These dimensions contribute to rider positioning and balance during both stationary and moving conditions.
The motorcycle has a running weight of 919 pounds and a gross vehicle weight rating of 1,360 pounds. The front axle weight rating is 500 pounds, and the rear axle weight rating is 927 pounds. Luggage capacity is measured at 5.05 cubic feet, supporting extended travel requirements.
Suspension Components and Wheel Configuration
The front suspension uses a 49 mm Dual Bending Valve fork. This system is designed to provide controlled damping and consistent response across varying road surfaces. Rear suspension consists of dual adjustable emulsion shocks. The left shock includes remote preload adjustment, while the right shock uses threaded preload adjustment.
Front suspension travel is 4.6 inches, and rear suspension travel is 3 inches. These values define the range of vertical wheel movement and influence ride quality and stability under load.
The motorcycle is equipped with cast aluminum wheels. The front wheel has a diameter of 19 inches and a width of 3.5 inches. The rear wheel has a diameter of 18 inches and a width of 5 inches. Tire specifications include a 130/60B19 front tire and a 180/55B18 rear tire, both from the Dunlop® Harley-Davidson® Series with bias construction.
Braking System and Control Mechanisms
The braking system includes dual floating front rotors and a fixed rear rotor. The front brakes use dual 32 mm four-piston fixed calipers, while the rear uses a single caliper. The front rotor diameter is 12.6 inches with a thickness of 0.18 inches. The rear rotor diameter is 11.8 inches with a thickness of 0.28 inches.
Anti-lock braking is included as standard equipment. The system is designed to prevent wheel lockup during braking events and maintain traction.
Additional control systems include Electronic Linked Braking, which distributes braking force between the front and rear wheels. The Traction Control System monitors wheel speed and adjusts power delivery to maintain grip. The Drag-torque Slip Control System manages rear wheel behavior during deceleration. Vehicle Hold Control assists with maintaining position on inclines. The Tire Pressure Monitoring System provides continuous feedback on tire pressure levels.
Cornering-enhanced systems are also included. These include cornering-enhanced ABS, cornering-enhanced Electronic Linked Braking, cornering-enhanced Traction Control, and cornering Drag-torque Slip Control. These systems adjust performance based on lean angle and contribute to stability during cornering maneuvers.
Electrical System and Lighting Components
The electrical system includes a sealed 12-volt battery rated at 28 amp-hours and 405 cold-cranking amps. Charging is managed by a three-phase 58-amp system capable of producing up to 754 watts at 13 volts.
The starting system uses a 1.6-kilowatt electric starter with solenoid shift motor engagement. This configuration supports consistent ignition performance.
Lighting components are fully LED. The headlamp, tail and stop lamp, front signal lights, and rear turn signals all use LED technology. Auxiliary LED fog lamps are integrated into the lower fairings to improve visibility.
The motorcycle includes a USB-C power outlet rated at 15 watts located in the media storage compartment. An additional power outlet is located in the Tour-Pak® storage area. These features support device charging during operation.
Infotainment System and Connectivity Features
The 2026 Harley-Davidson® Road Glide® Limited uses the Skyline™ OS infotainment system. The display is a 12.3-inch full-color TFT screen that integrates digital gauges and system controls. This display serves as the primary interface for vehicle information and media functions.
The audio system includes four speakers with an output of 50 watts per channel. Two speakers are located in the front fairing, and two are located in the Tour-Pak®. Each speaker measures 6.5 inches in diameter.
The system supports AM and FM radio, as well as USB-based media playback. Bluetooth® connectivity allows for hands-free mobile phone operation and media streaming. Apple CarPlay® is supported in both wireless and wired configurations.
Navigation is integrated through an embedded GPS system. This system provides route guidance and includes traffic and weather data when connected through a Wi-Fi hotspot subscription. The interface also supports text-to-speech functionality and displays vehicle information such as air temperature and oil pressure.
Fuel Capacity and Efficiency Metrics
The motorcycle has a fuel capacity of 6 gallons, with a reserve indicator at approximately 1 gallon. Fuel economy is estimated at 45 miles per gallon based on combined city and highway testing.
Fluid capacities include 5 quarts of engine oil with filter, 1 quart for the transmission, 1.1 quarts for the primary chain case, and 0.82 quarts for the coolant system. These specifications define the operational requirements for maintaining system performance.
