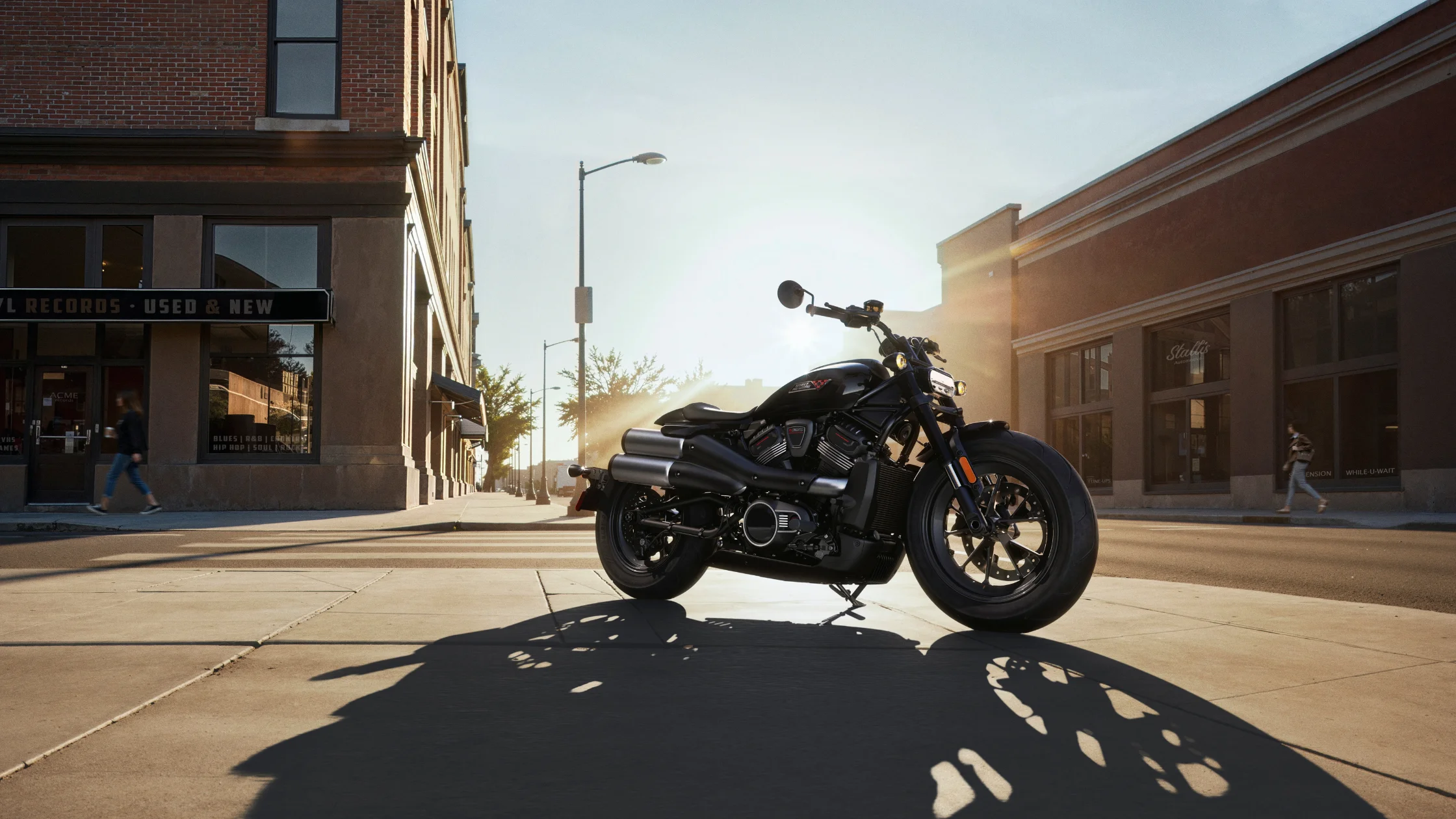

The 2026 Harley-Davidson® Sportster® S is a performance-focused motorcycle built around the Revolution® Max 1250T powertrain, a structurally integrated chassis, adjustable suspension components, and a comprehensive suite of electronic rider-assistance technologies. The model combines modern engine engineering with advanced braking, connectivity, and instrumentation systems while maintaining a compact overall profile. Its technical package includes variable valve timing, electronic fuel injection, cornering-enhanced safety systems, a color TFT display, and fully adjustable suspension hardware. The motorcycle is engineered to deliver strong output, responsive handling characteristics, and extensive rider information through integrated electronic systems.
Engine Design and Performance Characteristics
The 2026 Harley-Davidson® Sportster® S is powered by the Revolution® Max 1250T engine, a liquid-cooled powerplant with a displacement of 1,252 cc. Engine dimensions include a 4.134-inch bore and a 2.846-inch stroke, resulting in a compact yet high-capacity configuration. The engine utilizes chain-driven dual overhead camshafts, hydraulic self-adjusting lifters, intake and exhaust variable valve timing, and four valves per cylinder. This arrangement supports precise valve operation across a broad operating range while reducing maintenance requirements associated with manual valve adjustment. A 12.0:1 compression ratio further defines the engine’s performance-oriented design and contributes to its output characteristics.
Fuel Delivery, Air Intake, and Exhaust Systems
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, providing controlled fuel metering throughout the operating range. The induction system incorporates a downdraft intake arrangement with tuned velocity stacks and washable filter media. This design promotes direct airflow into the combustion chambers while also supporting serviceability through the reusable filter element. Exhaust gases are routed through a 2-into-1-into-2 exhaust system with a catalyst integrated into the muffler assembly. The lubrication system uses a semi-dry sump configuration that supports the engine’s packaging requirements while providing effective oil management.
Output and Performance Specifications
The Revolution® Max 1250T engine produces a rated 121 horsepower, or 90 kW, at 7,500 rpm. Peak torque is listed at 93 ft-lb and occurs at 6,000 rpm. These output figures demonstrate the engine’s emphasis on strong performance across a broad portion of the operating range. Lean-angle capability is specified at 35 degrees to both the left and right sides, providing balanced cornering geometry.
Drivetrain and Power Transfer Systems
The drivetrain of the 2026 Harley-Davidson® Sportster® S is designed to efficiently transfer engine output to the rear wheel through a combination of mechanical and belt-driven components. The primary drive uses a gear arrangement with a 49/89 ratio, while the final drive utilizes a belt system with a 34/80 ratio. This configuration contributes to smooth power delivery while maintaining the mechanical simplicity associated with belt-driven systems.
Clutch Design and Transmission Configuration
Power is managed through a mechanical eight-plate wet clutch equipped with assist-and-slip functionality. This clutch configuration helps moderate driveline forces during downshifts while maintaining consistent engagement characteristics during acceleration. The transmission is a 6-Speed unit that provides a broad range of gearing options across varying operating conditions. Overall gear ratios are specified as 12.21 in first gear, 9.022 in second gear, 6.994 in third gear, 5.641 in fourth gear, 4.731 in fifth gear, and 4.131 in sixth gear.
Chassis Construction and Motorcycle Geometry
The chassis of the 2026 Harley-Davidson® Sportster® S utilizes a stressed-member architecture that integrates the powertrain into the motorcycle’s overall structural design. The frame is constructed from high-strength low-alloy steel and incorporates trellis-style engineering with stamped, cast, and forged junctions. MIG-welded construction is used throughout the frame assembly, while an aluminum forged mid-structure contributes to the overall design.
Swingarm Engineering and Structural Components
The swingarm is also manufactured from high-strength low-alloy steel and features tubular sections, forged axle junctions, and a stamped cross-member. MIG welding is used throughout its construction to maintain structural integrity. The swingarm design works in conjunction with the chassis and rear suspension system to manage load distribution and wheel movement.
Dimensions and Rider Positioning
The 2026 Harley-Davidson® Sportster® S measures 89.4 inches in overall length, 33.1 inches in width, and 42.7 inches in height. It features a wheelbase of 59.8 inches, a steering-head rake of 30 degrees, a fork angle of 28 degrees, and 5.8 inches of trail. These dimensions establish the motorcycle’s stance and steering geometry while influencing stability and directional response. Seat height is listed at 28.9 inches when laden and 30.1 inches when unladen. Static ground clearance measures 3.5 inches, contributing to the motorcycle’s overall profile and operating geometry.
Weight and Capacity Specifications
The 2026 Harley-Davidson® Sportster® S has an as-shipped weight of 487 pounds and a running-order weight of 502 pounds. Gross vehicle weight rating is specified at 922 pounds, while the front and rear gross axle weight ratings are listed at 359 pounds and 595 pounds, respectively. Fuel capacity measures 3.1 gallons, with a reserve fuel capacity of 0.8 gallons indicated through the fuel-injection warning system. Oil capacity with filter is 4.75 quarts, and coolant capacity is 2.32 quarts.
Suspension, Wheels, and Tire Equipment
The suspension package on the 2026 Harley-Davidson® Sportster® S emphasizes adjustability and chassis control through fully tunable front and rear components. Suspension settings can be tailored through multiple adjustment points, allowing riders to modify the motorcycle’s response characteristics. The overall system is designed to complement the chassis architecture while supporting handling consistency and rider confidence. Both front and rear suspension assemblies incorporate features typically associated with performance-oriented motorcycle design.
Front Suspension System
Front suspension duties are handled by a 43 mm inverted fork equipped with compression damping, rebound damping, and spring preload adjustability. Aluminum fork triple clamps are incorporated into the assembly and contribute to the front-end structure. The inverted design places larger fork components closer to the steering assembly and supports overall rigidity. Front suspension travel is specified at 3.6 inches.
Rear Suspension System
Rear suspension is managed by a linkage-mounted piggyback monoshock. The shock incorporates compression damping adjustment, rebound damping adjustment, and hydraulic spring preload adjustment. This configuration provides a broad range of tuning capability while maintaining a compact packaging arrangement. Rear suspension travel measures 3.2 inches. The linkage-mounted design works together with the swingarm and chassis structure to support controlled suspension movement and predictable handling behavior.
Wheels and Tires
The motorcycle rides on satin black aluminum cast wheels. The front wheel measures 17 inches in diameter and 4.5 inches in width, while the rear wheel measures 16 inches in diameter and 5 inches in width. Tire equipment consists of Dunlop® Harley-Davidson® Series radial tires. The front tire specification is GT503 in a 160/70R17 73V size, and the rear tire specification is GT503 in a 180/70R16 77V size. These wheel and tire dimensions contribute to the motorcycle’s handling characteristics, stability, and overall chassis balance.
Braking Systems and Rider Safety Technologies
The braking system combines substantial hardware specifications with an extensive collection of electronic rider-assistance technologies. Together, these systems support controlled braking performance while enhancing rider confidence through integrated safety functions. The motorcycle includes both conventional and cornering-enhanced rider safety systems as standard equipment. This comprehensive approach reflects the model’s emphasis on combining mechanical performance with electronic support technologies.
Brake Hardware Specifications
The front braking system uses a radially mounted monoblock four-piston caliper operating on a single floating, tower-mounted rotor. The front rotor measures 12.6 inches in diameter and 0.2 inches in thickness. At the rear, braking duties are handled by a floating single-piston caliper paired with a solid uniform expansion rotor measuring 10.2 inches in diameter and 0.2 inches in thickness. The motorcycle utilizes a single front rotor rather than a dual-disc arrangement. These components provide the foundation for the motorcycle’s braking performance and electronic control systems.
Standard Rider Safety Enhancements
Anti-lock Braking System is included as standard equipment on the 2026 Harley-Davidson® Sportster® S. Additional rider-assistance technologies include Traction Control System, Drag-Torque Slip Control System, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems monitor key vehicle functions and provide intervention when operating conditions require additional support. Their integration enhances the motorcycle’s overall safety package while maintaining the rider’s connection to the machine. Each system contributes a specific function designed to assist with stability and control.
Cornering-Enhanced Safety Systems
The motorcycle also incorporates Cornering Enhanced Anti-lock Brake System, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. Enhanced Lift Mitigation is included as part of the cornering-focused safety package. These systems are designed to provide additional support during cornering situations while complementing the motorcycle’s standard rider-assistance technologies. Their inclusion expands the scope of electronic intervention available to the rider.
Electrical Equipment and Rider Information Systems
The electrical architecture of the 2026 Harley-Davidson® Sportster® S supports vehicle operation, rider information, connectivity functions, and lighting systems. The motorcycle uses a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 12 amp-hours, with 225 cold-cranking amps at 0°F. Charging is managed through a three-phase 45-amp system capable of producing 300 watts at 13 volts and 1,200 rpm, with maximum output reaching 585 watts at 13 volts and 2,250 rpm. Starting duties are handled by a 0.9 kW electric system utilizing direct-drive starter motor engagement. These components form the foundation of the motorcycle’s electrical infrastructure.
LED Lighting Systems
Lighting equipment consists entirely of LED technology. The headlamp includes low-beam and high-beam functionality along with signature position lighting. Rear lighting is also fully LED, providing stop and tail lamp functions through modern lighting technology. Front and rear turn signals use LED Bullet Turn Signal assemblies. This lighting configuration contributes to visibility while supporting the motorcycle’s contemporary electrical design.
TFT Instrumentation and Connectivity
A 4-inch color TFT display serves as the primary rider interface. The display presents information including speedometer, gear position, odometer, fuel level, clock, trip data, ambient temperature, low-temperature alert, side-stand-down alert, tip-over alert, cruise indication, range information, and tachometer data. Bluetooth® capability allows phone pairing for access to phone calls, music functions, and navigation through the H-D App. Hands-free mobile phone functionality is standard, and Bluetooth® supports both phone and media operation. Navigation functions are available through Bluetooth® connectivity, while a USB-C connection supports charging and instrument updates.
Vehicle Information Functions
The vehicle information display provides access to tire pressure monitoring information, engine temperature data, battery voltage information, and ambient air temperature readings. Text-to-speech functionality remains dependent on the connected phone. USB-C charging capability is specified at 5 volts and 3 amps, while the listed USB-C output specification is 5 volts at 2.4 amps. These information and connectivity features allow riders to monitor vehicle status and maintain access to supported electronic functions through a centralized display interface.
