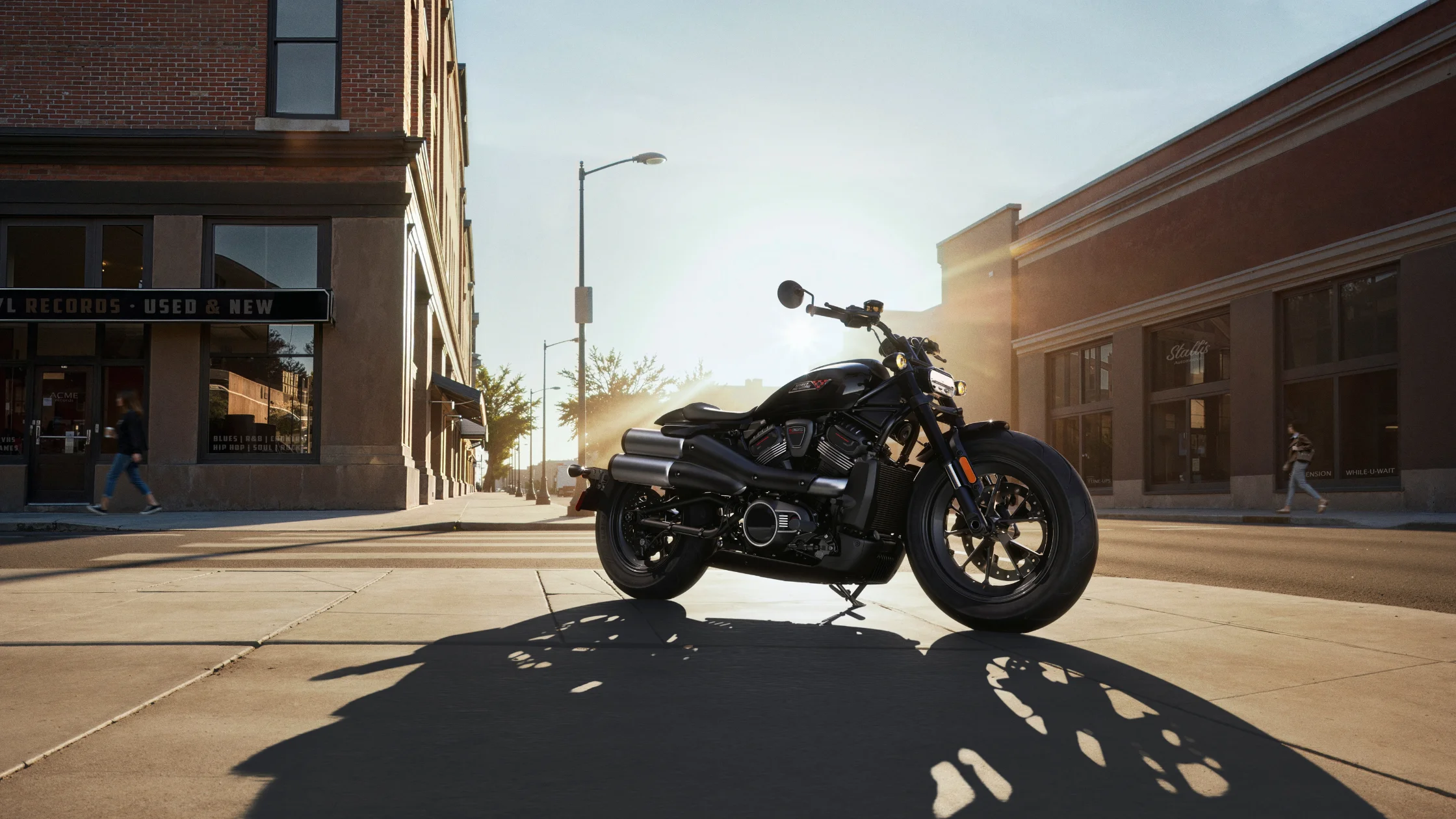

The 2026 Harley-Davidson® Sportster® S is engineered as a performance-focused motorcycle that combines a high-output engine, compact chassis geometry, advanced rider electronics, and modern suspension architecture. The platform emphasizes measurable performance metrics rather than stylistic interpretation. Its specifications reflect a motorcycle designed for strong acceleration, controlled handling, and integrated rider assistance systems. The model uses a structural approach where engine and chassis design work together to reduce mass while increasing rigidity. From a technical standpoint, the 2026 Harley-Davidson® Sportster® S positions itself as a motorcycle built around efficiency, controllability, and consistent power delivery.
Dimensionally, the motorcycle measures 89.4 inches in length, with an overall width of 33.1 inches and a height of 42.7 inches. Seat height is specified at 28.9 inches laden and approximately 30.1 inches unladen. Ground clearance measures 3.5 inches. The geometry includes a 30-degree rake, a 28-degree fork angle, and 5.8 inches of trail. The wheelbase spans 59.8 inches, supporting stable tracking while allowing responsive directional changes. These numbers collectively define the dynamic behavior of the motorcycle, balancing stability and maneuverability.
Engine Engineering and Output Characteristics
The 2026 Harley-Davidson® Sportster® S uses the Revolution® Max 1250T engine, a liquid-cooled V-Twin configured for high-output performance and efficient thermal management. The engine uses chain-driven dual overhead camshafts with hydraulic self-adjusting lifters and variable valve timing on intake and exhaust valves. This configuration allows consistent valve control across the rev range and supports smooth transitions between low and higher engine speeds.
Displacement measures 1,252 cc, or 76.4 cubic inches. The engine uses a bore of 4.134 inches and a stroke of 2.846 inches, forming a short-stroke design that contributes to strong power development at higher RPM. The compression ratio is specified at 12.0:1, supporting efficient combustion. Fuel delivery uses Electronic Sequential Port Fuel Injection, enabling precise fuel metering under varying operating conditions. The downdraft intake system features tuned velocity stacks and washable filter media to optimize airflow consistency.
Rated engine output is 121 horsepower at 7,500 rpm, with torque measured at 93 ft-lb at 6,000 rpm. These values indicate a balance between high-rev horsepower and midrange torque availability. Lubrication uses a semi-dry sump system, allowing stable oil management during acceleration and directional changes. Exhaust routing follows a 2-into-1-into-2 configuration with a catalyst integrated into the muffler assembly. Overall, the engine combines modern control systems and mechanical efficiency to deliver predictable throttle response and strong acceleration characteristics.
Transmission and Drivetrain Configuration
The drivetrain configuration supports engine performance through a 6-speed transmission and a mechanical assist-and-slip clutch. The clutch uses an 8-plate wet design, reducing lever effort while maintaining stable rear-wheel behavior during aggressive downshifts. Gear engagement is designed to support both low-speed maneuvering and sustained highway operation.
Primary drive is gear-based with a 49/89 ratio, while the final drive relies on a belt system using a 34/80 ratio. Belt-driven systems reduce routine maintenance compared to chain-driven alternatives and contribute to smoother power transfer. Gear ratios are staged to provide short initial acceleration followed by progressively longer gearing for higher-speed efficiency. The overall ratios include 12.21 in first gear, followed by 9.022 in second, 6.994 in third, 5.641 in fourth, 4.731 in fifth, and 4.131 in sixth. These ratios support rapid acceleration while allowing controlled engine speed during steady cruising.
Chassis Design and Structural Layout
The chassis uses a stressed-member approach where the engine contributes directly to structural rigidity. The frame consists of high-strength, low-alloy steel arranged in a trellis configuration with stamped, cast, and forged junctions connected through MIG welding. This design improves rigidity while minimizing excess material weight. An aluminum forged mid-structure further reduces mass and supports strength at key load points.
The swingarm also uses high-strength low-alloy steel with tubular sections and forged axle junctions. This layout improves rear suspension tracking and maintains stability under acceleration. Structural design focuses on transferring power efficiently while preserving predictable handling characteristics during changes in direction.
Weight specifications include approximately 487 pounds as shipped and 502 pounds in running order. Gross vehicle weight rating is listed at 922 pounds. The front axle weight rating is 359 pounds, and the rear axle rating is 595 pounds. These weight distributions support stability and contribute to consistent suspension response.
Suspension and Dynamic Handling Systems
The front suspension uses a 43 mm inverted fork equipped with compression, rebound, and spring preload adjustability. Adjustable parameters allow riders to tune the motorcycle for different riding styles or operating conditions. Aluminum fork triple clamps support rigidity and reduce flex during aggressive braking.
The rear suspension uses a linkage-mounted piggyback monoshock with compression, rebound, and hydraulic spring preload adjustments. This setup provides progressive suspension response and improved isolation from surface irregularities. Suspension travel is measured at 3.6 inches in front and 3.2 inches in the rear, creating a controlled and direct connection between rider and road while maintaining sufficient compliance for everyday riding conditions.
Lean angles are rated at 35 degrees on both the left and right sides. This specification, combined with wheelbase length and steering geometry, produces a stable platform during cornering while retaining responsive steering inputs. The suspension architecture supports predictable handling characteristics without excessive chassis movement.
Wheels, Tires, and Braking Performance
The 2026 Harley-Davidson® Sportster® S uses aluminum cast wheels finished in satin black. Front wheel diameter is 17 inches with a width of 4.5 inches. Rear wheel diameter measures 16 inches with a width of 5 inches. Tire selection includes Dunlop® Harley-Davidson® Series radial tires. The front tire specification is 160/70R17 73V, while the rear uses a 180/70R16 77V configuration. These tire sizes support traction during acceleration and cornering while maintaining stability under load.
Braking components are designed to provide strong stopping capability. The front uses a radially mounted monoblock four-piston caliper paired with a 12.6-inch floating rotor. The rear brake uses a floating single-piston caliper with a 10.2-inch rotor. Rotor thickness is 0.2 inches front and rear. The Anti-lock Braking System is included as standard equipment, supporting controlled braking on varying road surfaces. Brake design emphasizes consistent lever feel and modulation rather than abrupt intervention.
Electrical Architecture and Lighting Systems
The electrical system uses a sealed maintenance-free absorbed glass mat battery rated at 12V and 12Ah, with 225 cold cranking amps at 0°F. Charging is supported through a three-phase 45-amp system capable of delivering up to 585 watts at higher engine speed. Starting is managed through a 0.9 kW electric starter with direct drive engagement.
Lighting components are fully LED-based. The headlamp includes low and high beams with signature position lighting. Rear tail and stop lighting also use LED technology, improving visibility and reducing energy consumption. Front and rear turn signals use LED bullet-style indicators. The lighting configuration increases durability while lowering power demand on the electrical system.
Instrumentation and Technology Integration
Instrumentation centers around a 4-inch color TFT display providing a wide range of operational data. Displayed information includes speed, gear position, odometer, fuel level, clock, trip data, ambient temperature, range estimation, and tachometer indication. Additional alerts include low-temperature warnings, side stand notifications, and tip-over alerts. The interface is designed to consolidate riding data into a single viewable location without excessive visual complexity.
Bluetooth® capability enables phone pairing for calls, media functions, and navigation when used with the designated application ecosystem. Hands-free mobile phone support is standard, and headset functionality is supported for intercom use. USB-C charging and instrument update capability deliver 5V output with up to 3A support. Vehicle information monitoring includes tire pressure monitoring data, engine temperature, battery voltage, and ambient air temperature. Technology integration prioritizes functional rider information instead of entertainment-oriented features.
Rider Safety and Electronic Assistance Systems
Rider safety systems extend beyond traditional ABS functionality. The motorcycle includes traction control, drag-torque slip control, wheel lift mitigation, and tire pressure monitoring. These systems work together to manage engine output and braking response during rapid acceleration or deceleration. Electronic intervention is calibrated to support rider control without abrupt system interference.
Cornering-enhanced safety functions include cornering ABS, cornering traction control, and cornering drag-torque slip control. These systems adjust performance parameters based on lean angle input, improving stability during turning scenarios. Enhanced lift mitigation supports controlled front wheel behavior under strong acceleration. Vehicle Hold Control and Electronic Linked Braking are not included in this configuration. Safety systems focus on maintaining predictable vehicle behavior under varied riding conditions.
Fuel Efficiency and Operational Capacity
Fuel capacity is rated at 3.1 gallons, with a reserve warning indicator corresponding to approximately 0.8 gallons. Oil capacity with filter measures 4.75 quarts, while coolant capacity is listed at 2.32 quarts. Estimated fuel economy is approximately 49 mpg under combined city and highway conditions. These figures indicate a motorcycle engineered to balance performance output with practical operating range and maintenance efficiency.
