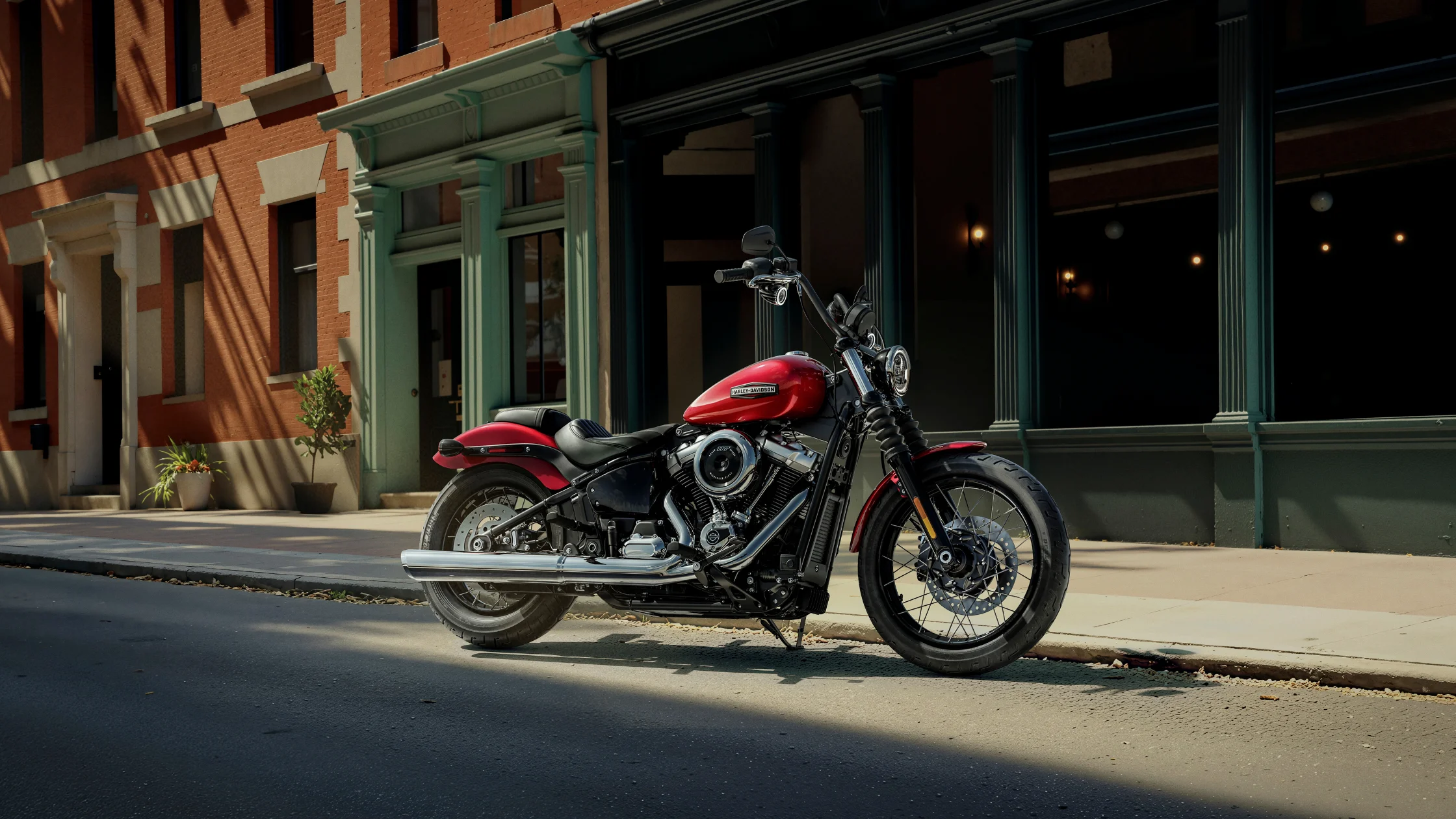

The 2026 Harley-Davidson® Street Bob® is designed as a stripped-down cruiser that prioritizes mechanical efficiency, structural balance, and rider-focused control systems. This model integrates a large-displacement V-twin engine with a rigid steel frame and calibrated suspension components to deliver consistent output across varying riding conditions. The motorcycle features a defined geometry with a 64.2-inch wheelbase and a 30-degree rake, supporting directional stability and predictable steering response. Its overall length measures 91.3 inches, while the width is set at 36.4 inches and the height at 45.7 inches. A laden seat height of 25.8 inches contributes to a low center of gravity, improving control during low-speed maneuvers and stops.
The 2026 Harley-Davidson® Street Bob® maintains a static ground clearance of 4.9 inches, which supports adequate lean capability without excessive chassis interference. Tire selection includes Dunlop® Harley-Davidson® Series bias blackwall tires, sized 100/90B19 at the front and 150/80B16 at the rear. These specifications provide a balance between grip, durability, and ride comfort. The motorcycle is engineered to maintain consistent handling characteristics through a combination of frame rigidity, suspension calibration, and weight distribution.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Street Bob® is equipped with the Milwaukee-Eight® 117 Classic engine, configured with pushrod-operated overhead valves and hydraulic self-adjusting lifters. This engine design includes four valves per cylinder, supporting efficient airflow and combustion. The bore measures 4.075 inches, and the stroke measures 4.5 inches, resulting in a total displacement of 117 cubic inches, or 1,923 cubic centimeters. The compression ratio is set at 10.3:1, which contributes to combustion efficiency and torque production.
The engine produces 98 horsepower at 4,600 rpm and generates 120 ft-lb of torque at 2,500 rpm. This torque output at lower engine speeds allows for consistent acceleration without requiring frequent gear changes. Fuel delivery is controlled through Electronic Sequential Port Fuel Injection, which ensures accurate fuel metering under varying throttle inputs and operating conditions.
Air intake is managed by a 9-inch round air cleaner that uses washable fiberglass filter media. This configuration supports sustained airflow while allowing for maintenance and reuse. Exhaust gases are routed through a 2-into-1 exhaust system that includes a catalyst in the header, maintaining emissions compliance while supporting engine efficiency. The lubrication system is pressurized and uses a dry-sump design with an integrated oil cooler, which helps regulate engine temperature during extended operation.
Transmission System and Gear Ratios
The drivetrain of the 2026 Harley-Davidson® Street Bob® is configured to provide consistent power transfer and operational durability. The primary drive uses a chain system with a 34 to 46 ratio, while the final drive uses a belt system with a 32 to 66 ratio. This combination supports efficient torque delivery and reduced maintenance compared to fully chain-driven systems.
The 2026 Harley-Davidson® Street Bob® is equipped with a 6-Speed Cruise Drive® transmission. This transmission allows the engine to operate at lower revolutions per minute during highway travel, which contributes to reduced mechanical stress and improved fuel efficiency. The clutch system is a mechanical 10-plate wet design with assist functionality, which reduces lever effort while maintaining reliable engagement.
Gear ratios are calibrated to support progressive acceleration. First gear is set at 9.311, second gear at 6.454, third gear at 4.793, fourth gear at 3.882, fifth gear at 3.307, and sixth gear at 2.79. These ratios provide a wide operating range, allowing the motorcycle to perform effectively in both low-speed and high-speed conditions.
Frame Construction and Structural Components
The frame of the 2026 Harley-Davidson® Street Bob® is constructed from mild steel using tubular sections and a rectangular backbone. The design incorporates stamped, cast, and forged junctions, which are joined through MIG welding. This construction approach improves rigidity while maintaining controlled weight levels. Aluminum forged fender supports are integrated into the structure, contributing to overall durability.
The swingarm is also constructed from mild steel and includes tubular sections with a stamped cross-member and forged axle junctions. The swingarm design supports alignment stability and includes a removable belt spacer to facilitate maintenance.
The 2026 Harley-Davidson® Street Bob® has a wheelbase of 64.2 inches and a trail measurement of 6.2 inches. These dimensions contribute to straight-line stability and controlled steering input. The geometry is configured to balance stability with maneuverability, allowing the motorcycle to maintain predictable handling characteristics across different riding scenarios.
Suspension Design and Ride Dynamics
The front suspension uses a 49 mm telescopic fork equipped with dual-bending valve technology. This system adjusts damping characteristics based on road conditions, allowing for improved ride control and reduced front-end dive during braking. The fork is supported by aluminum triple clamps, which contribute to structural strength and weight reduction.
The rear suspension consists of a hidden coil-over monoshock with a 43 mm stroke. The shock includes a cam-style preload adjustment, allowing the rider to modify suspension settings based on load conditions. This adjustability supports consistent ride quality when carrying additional weight.
Suspension travel is measured at 5 inches in the front and 3.4 inches in the rear. These values provide a balance between comfort and handling precision. The suspension system is designed to absorb road irregularities while maintaining consistent tire contact with the road surface.
Wheels, Tires, and Braking Configuration
The 2026 Harley-Davidson® Street Bob® is equipped with cast aluminum Annihilator wheels. The front wheel has a diameter of 19 inches and a width of 2.5 inches, while the rear wheel has a diameter of 16 inches and a width of 3 inches. These dimensions support stable handling and contribute to the motorcycle’s overall stance.
The braking system includes a 4-piston fixed caliper at the front and a 2-piston floating caliper at the rear. The front brake rotor measures 11.8 inches in diameter with a thickness of 0.2 inches, while the rear rotor measures 11.5 inches in diameter with a thickness of 0.23 inches. These components provide consistent braking performance and heat dissipation.
Anti-lock Braking System functionality is standard. This system prevents wheel lock during braking by modulating brake pressure, improving control during sudden deceleration. The braking system is configured to provide predictable stopping performance under various conditions.
Electrical System and Instrumentation Interface
The electrical system is supported by a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 ampere-hours. The battery provides reliable starting performance and consistent electrical output. The charging system is a three-phase, 48-amp configuration capable of delivering up to 624 watts at higher engine speeds.
The starting system uses a 1.6-kilowatt electric starter motor with solenoid engagement. This system ensures consistent engine ignition under various operating conditions.
Lighting components include LED headlamps with low beam, high beam, and signature position lighting. The motorcycle also uses LED tail and stop lamps, as well as LED bullet-style turn signals. These lighting systems improve visibility while maintaining energy efficiency.
Instrumentation is provided through a 4-inch analog speedometer combined with a digital display. The display provides information such as gear position, odometer readings, fuel level, ride modes, traction control status, anti-lock braking system status, tire pressure monitoring, cruise control, clock, trip data, range, and tachometer readings. A USB-C power outlet with a 5-volt, 2.4-amp output is included for device charging.
Rider Safety Systems and Control Enhancements
The 2026 Harley-Davidson® Street Bob® integrates several safety systems designed to maintain stability and control. Anti-lock Braking System functionality is included as a standard feature. The Traction Control System monitors wheel speed and adjusts engine output to prevent loss of traction during acceleration. The Drag-torque Slip Control System reduces rear-wheel slip during aggressive downshifting by managing engine braking forces.
The Tire Pressure Monitoring System provides continuous monitoring of tire pressure levels, allowing the rider to maintain optimal tire performance. Cornering-enhanced versions of these systems are also included. These systems adjust braking and traction control parameters based on lean angle, improving stability during cornering.
The 2026 Harley-Davidson® Street Bob® has a lean angle of 28.5 degrees on both the left and right sides. This specification defines the maximum angle at which the motorcycle can lean before components approach contact with the road surface. These safety systems operate in conjunction with the chassis and suspension to maintain control under varying conditions.
Fuel Capacity and Efficiency Metrics
The fuel tank has a capacity of 3.5 gallons, with a reserve capacity of approximately 1 gallon indicated by a warning light. This capacity supports extended riding distances without frequent refueling. The motorcycle achieves an estimated fuel economy of 47 miles per gallon under combined city and highway conditions.
Fluid capacities include 5 quarts of engine oil with a filter, 1 quart for the transmission, and 1.25 quarts for the primary chain case. These capacities support proper lubrication and cooling across the engine and drivetrain components.
Weight Distribution and Operational Balance
The 2026 Harley-Davidson® Street Bob® has a weight of 622 pounds as shipped and 646 pounds in running order. The gross vehicle weight rating is set at 1,160 pounds, with a front axle rating of 450 pounds and a rear axle rating of 730 pounds. These values define the load capacity and distribution limits of the motorcycle.
Weight distribution is configured to support stability and control. The combination of a low seat height, balanced frame geometry, and suspension tuning contributes to predictable handling characteristics. The motorcycle is designed to maintain consistent performance under varying load conditions.
