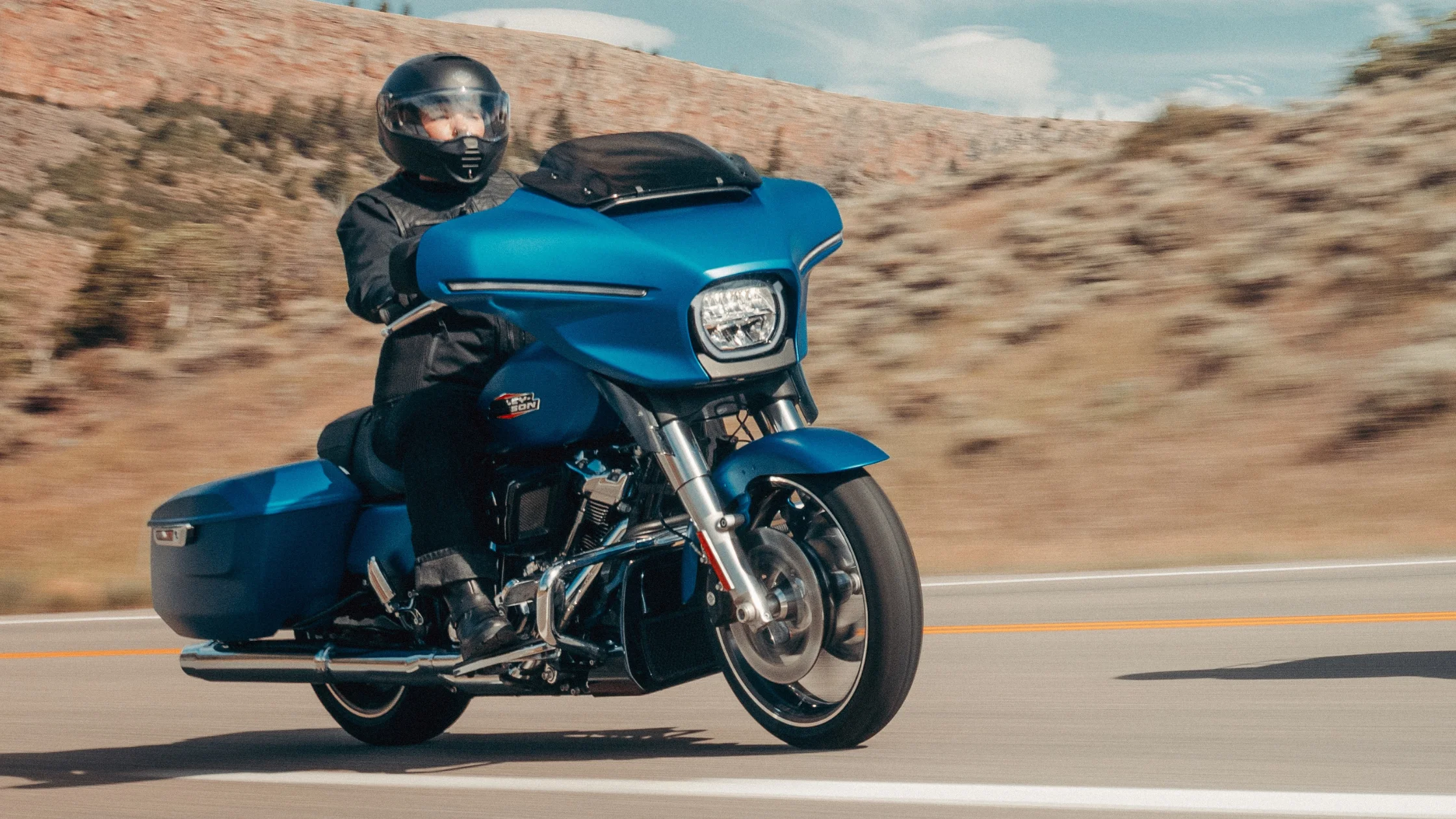

The 2026 Harley-Davidson® Street Glide® is engineered as a touring motorcycle with a defined focus on measurable performance, structural integrity, and integrated electronic systems. The model is built on a mild steel frame platform and incorporates a Milwaukee-Eight® 117 engine paired with a 6-speed transmission. Its configuration supports long-distance operation through a combination of fuel capacity, chassis geometry, and rider-assist systems. The motorcycle maintains a consistent approach to engineering by combining mechanical reliability with modern digital integration.
The overall length measures 94.9 inches, with a width of 38.4 inches and a height of 53.1 inches. The wheelbase extends to 64 inches, contributing to directional stability during sustained highway operation. Seat height is 26.4 inches in a laden condition and 28.1 inches unladen, providing accessible ergonomics for a range of riders. Ground clearance is measured at 5.5 inches, allowing sufficient clearance during cornering while maintaining a low center of gravity.
Milwaukee-Eight® 117 Engine Configuration and Output
The 2026 Harley-Davidson® Street Glide® is equipped with the Milwaukee-Eight® 117 engine, delivering a displacement of 1,923 cubic centimeters. The engine uses a pushrod-operated overhead valve configuration with hydraulic self-adjusting lifters and four valves per cylinder. This design supports consistent valve operation and reduces maintenance intervals associated with manual adjustments.
The bore measures 4.075 inches, while the stroke extends to 4.5 inches. The compression ratio is rated at 10.3 to 1, contributing to efficient combustion and consistent power delivery. The engine produces 105 horsepower at 4,600 revolutions per minute and generates 130 foot-pounds of torque at 3,250 revolutions per minute. This torque output supports steady acceleration and sustained cruising performance.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which regulates fuel flow with precision under varying throttle inputs. The intake system includes a fiberglass, washable air cleaner designed for durability and repeated use. Exhaust gases are routed through a 2-1-2 dual exhaust system with tapered mufflers, supporting balanced flow and consistent engine response. The lubrication system operates as a pressurized dry-sump configuration, maintaining oil distribution independent of engine orientation.
Drivetrain Mechanics and Gear Ratio Distribution
Power is transmitted through a primary chain drive with a 34 to 46 ratio, followed by a belt-driven final system with a 32 to 68 ratio. This arrangement balances durability with reduced maintenance requirements compared to fully chain-driven systems. The drivetrain is designed to manage the torque output of the Milwaukee-Eight® 117 engine while maintaining smooth operation across all gears.
The 6-Speed Cruise Drive® transmission provides a progressive gear ratio sequence. First gear is set at 9.593, allowing controlled launches. Second gear is rated at 6.65, followed by third at 4.938 and fourth at 4. Fifth gear is set at 3.407, and sixth gear reaches 2.875, enabling lower engine speeds during highway travel. This distribution supports both acceleration and fuel efficiency.
The clutch system is mechanically actuated and uses a 10-plate wet design with Assist and Slip functionality. This configuration reduces lever effort and improves stability during downshifting by limiting rear-wheel hop.
Structural Frame and Suspension Systems
The frame is constructed from mild steel using a tubular design with a two-piece stamped and welded backbone. Cast and forged junctions reinforce key stress points, while twin down-tubes provide additional rigidity. The rear frame section is bolt-on, allowing structural flexibility and serviceability. The swingarm is also fabricated from mild steel with a two-piece drawn and welded construction, ensuring consistent alignment and durability.
Front suspension is handled by a 49 millimeter Dual Bending Valve fork, which improves damping characteristics during compression and rebound cycles. Rear suspension consists of dual outboard emulsion shocks with 3 inches of travel and preload adjustability. This setup allows adjustment based on rider weight and cargo load, supporting stable ride characteristics across varying conditions.
Suspension travel is measured at 4.6 inches in the front and 3 inches in the rear. This balance supports controlled handling while maintaining rider comfort during extended operation.
Wheel Design, Tire Specifications, and Braking Components
The 2026 Harley-Davidson® Street Glide® uses cast aluminum wheels with a 19-inch front diameter and an 18-inch rear diameter. The front wheel width measures 3.5 inches, while the rear width is 5 inches. Tire specifications include a 130/60B19 front tire and a 180/55B18 rear tire, both designed to provide consistent grip and durability for touring applications.
Braking is managed through dual floating rotors at the front and a fixed rotor at the rear. The front brake system uses 4-piston fixed calipers with a rotor diameter of 12.6 inches and a thickness of 0.18 inches. The rear brake rotor measures 11.8 inches with a thickness of 0.28 inches. This configuration supports consistent braking performance and heat dissipation.
The Anti-lock Braking System is included as standard equipment, regulating brake pressure to prevent wheel lock-up during sudden braking events. Electronic Linked Braking distributes braking force between the front and rear systems to maintain stability.
Performance Metrics and Operational Efficiency
The lean angle capability is measured at 32 degrees on both the left and right sides, supporting controlled cornering within the touring category. The rake angle is set at 26 degrees, while the fork angle is 29.25 degrees. Trail measurement is 6.7 inches, contributing to predictable steering response and directional stability.
Fuel capacity is rated at 6 gallons, with a reserve capacity of approximately 1 gallon. Fuel economy is estimated at 44 miles per gallon under combined city and highway conditions. Oil capacity with filter is 5 quarts, while the transmission holds 1 quart of fluid. The primary chain case requires 1.1 quarts, and coolant capacity is 0.82 quarts.
Electrical System and Lighting Configuration
The electrical system is based on a sealed, maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. Charging is managed by a three-phase, 58-amp system capable of producing up to 754 watts of power at 13 volts. This output supports the motorcycle’s electronic systems and accessory requirements.
The starting system uses a 1.6-kilowatt electric starter with solenoid engagement. Lighting is fully LED-based, including the headlamp, tail and stop light, and turn signals. LED components provide consistent illumination and reduced power consumption.
A USB-C power outlet rated at 15 watts is located within the media storage compartment, allowing for device charging during operation.
Integrated Infotainment and Connectivity Systems
The infotainment system operates on Skyline™ OS and is displayed through a 12.3-inch full-color TFT screen. This interface integrates navigation, vehicle data, and media controls into a single display. Digital gauges are incorporated within the screen, reducing the need for separate instrumentation.
Audio output is delivered through two 5.25-inch speakers mounted within the fairing. Each channel is powered at 50 watts, providing adequate sound output during highway travel. The system supports AM and FM radio, as well as media playback through USB connections.
Bluetooth® connectivity allows for hands-free mobile phone operation and media streaming. Apple CarPlay® compatibility is included, supporting both wired and wireless connections. Navigation is integrated within the system and provides traffic and weather updates through a Wi-Fi connection.
Text-to-speech functionality is included, along with compatibility for rider and passenger headset communication systems. Vehicle information such as air temperature and oil pressure is displayed within the interface.
Advanced Rider Safety and Control Technologies
The 2026 Harley-Davidson® Street Glide® includes multiple electronic rider-assist systems designed to enhance control and stability. Anti-lock Braking System and Electronic Linked Braking function together to regulate braking force and maintain balance during deceleration.
The Traction Control System monitors wheel speed and adjusts power delivery to prevent loss of traction. The Drag-torque Slip Control System reduces rear-wheel instability during aggressive downshifting. Vehicle Hold Control assists the rider during stops on inclines by maintaining brake pressure until acceleration resumes.
Cornering-enhanced systems adjust braking and traction functions based on lean angle. These include Cornering Anti-lock Braking System, Cornering Electronic Linked Braking, Cornering Traction Control, and Cornering Drag-torque Slip Control. These systems provide additional control during turning maneuvers.
A Tire Pressure Monitoring System is included, allowing the rider to monitor tire pressure levels and maintain optimal performance.
